Overview

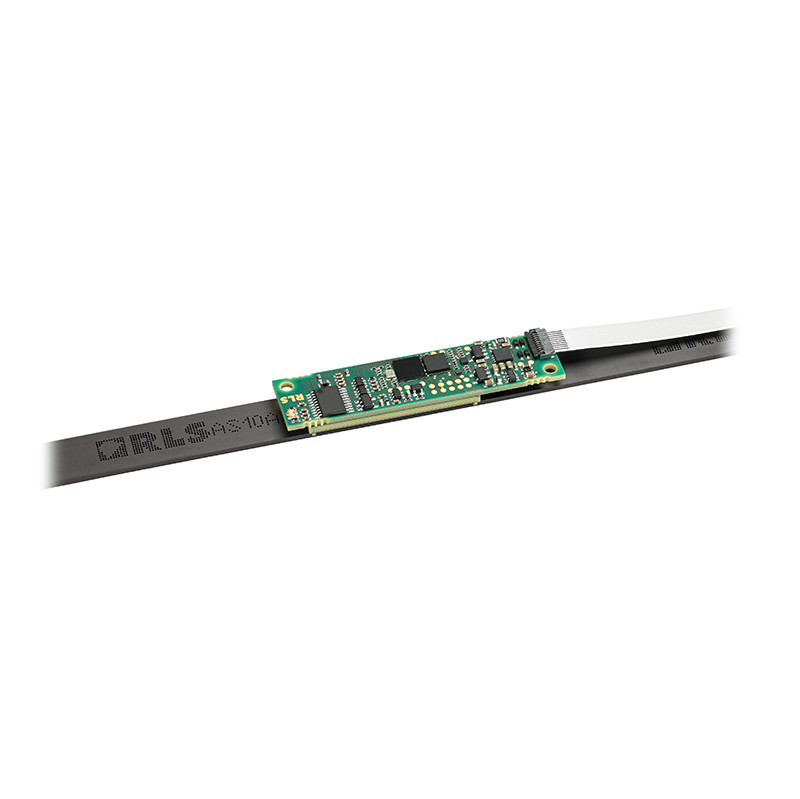

LF11 is a board-level absolute linear magnetic encoder system designed for motion control applications as a position and velocity control loop element.
The miniature design and low weight of the encoder system make it suitable for applications with limited space in relatively clean environments.
Features
- True absolute system
- Small footprint 50 × 12 × 5 mm
- Resolutions up to ~0.244 μm
- Axis lengths up to 16.3 m
- BiSS C unidirectional
Benefits
- Miniature design
- Suitable for highly dynamic control loops
Configure and Buy
Configure
Data sheet
Product data
System
Encoder type
Linear absolute
System accuracy
±30 μm/m at 0.2 mm ride height
Maximum speed
7 m/s
Hysteresis
< 2 µm up to 0.2 mm ride height
Electrical
Supply voltage
5 V ±5 %
Environmental
Humidity
Up to 85 % non-condensing
Temperature
Operating: 0 °C to +55 °C, Storage: –20 °C to +85 °C
