AS10
Absolute Magnetic Scale

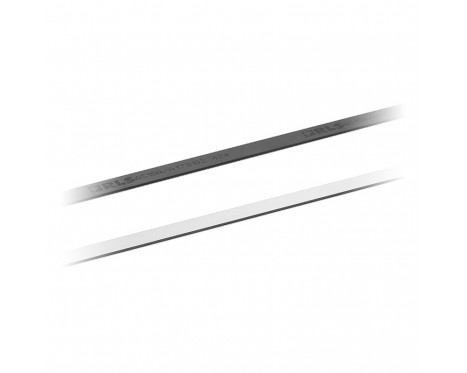

The robust AS absolute magnetic scales consist of a stainless steel carrier and an elastomer-bonded ferrite. The elasto-ferrite layer is magnetised with an incremental magnetic pattern and a pseudo-random code for reliable absolute position sensing.
Features & Benefits
- Excellent resistance to dirt, dust and humidity
- Easy installation with adhesive tape, end clamps or track section
- Optional protective cover foil for heavy duty applications
- Partial arc application possibility
- Easy installation
- Track system compatible
- Up to 16,3 m length
Product data
System
- Accuracy
- ±30 μm/m at 0.2 mm ride height
- Pole length
- 2 mm
- Max. length for AS scale
- 16.3 m
Environmental
- Temperature
- Operating: –40 °C to +100 °C, Storage: –40 °C to +60 °C
System parts
Downloads
- pdf Data sheet: LA11 absolute magnetic encoder system (LA11D01)
- pdf Data sheet: AS absolute magnetic scale (ASD01)
- pdf Installation guide: Table of recommended fastener tightening torques
- pdf Application note: CRC calculation (CRCD01)
- zip 3D model: LA11 absolute magnetic encoder system
- zip 3D model: TRE004A00
- zip 3D model: TRE004A01
- zip 3D model: AS10 scale
- zip 3D model: LMA10ASC00
- zip 3D model: AS10 scale with VHB
- pdf Declaration of conformity EU LA11
- pdf Declaration of conformity EU cover foils
- pdf Declaration of conformity EU MS AS WL HM MR FI
