Overview

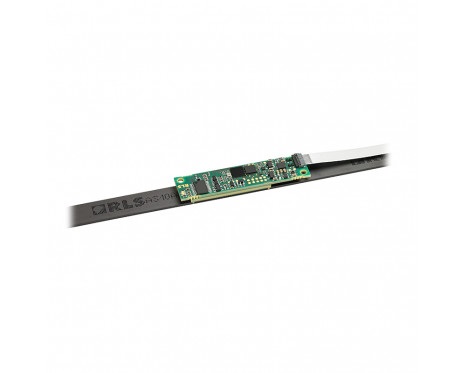

LF11 is a board-level absolute linear magnetic encoder system designed for motion control applications as a position and velocity control loop element.

The miniature design and low weight of the encoder system make it suitable for applications with limited space in relatively clean environments.

Features

  • True absolute system
  • Small footprint 50 × 12 × 5 mm
  • Resolutions up to ~0.244 μm
  • Axis lengths up to 16.3 m
  • BiSS C unidirectional

Benefits

  • Suitable for highly dynamic control loops
  • Speeds up to 7 m/s at 0.976 μm resolution
Configure and Buy Configure

Product data

System

Encoder type
Absolute
Reading type
Linear
System accuracy
±30 μm/m at 0.2 mm ride height
Repeatability
<1 μm
Hysteresis
< 2 µm up to 0.2 mm ride height
Pole length
2 mm

Electrical

Supply voltage
5 V ±5 %
Set-up time
< 1 s
Current consumption
< 160 mA at 5 V power supply

Environmental

Humidity
0 to 70 % non-condensing
Temperature
Operating: 0 °C to +55 °C, Storage: –20 °C to +85 °C
