Modular
Radial magnetic rings
- Radial rings
- Excellent dirt immunity
- Bi-directional reference mark
- High reliability from proven noncontact sensing technology
Axial magnetic rings
- Axial rings
- Excellent dirt immunity
- Bi-directional reference mark
- High reliability from proven noncontact sensing technology

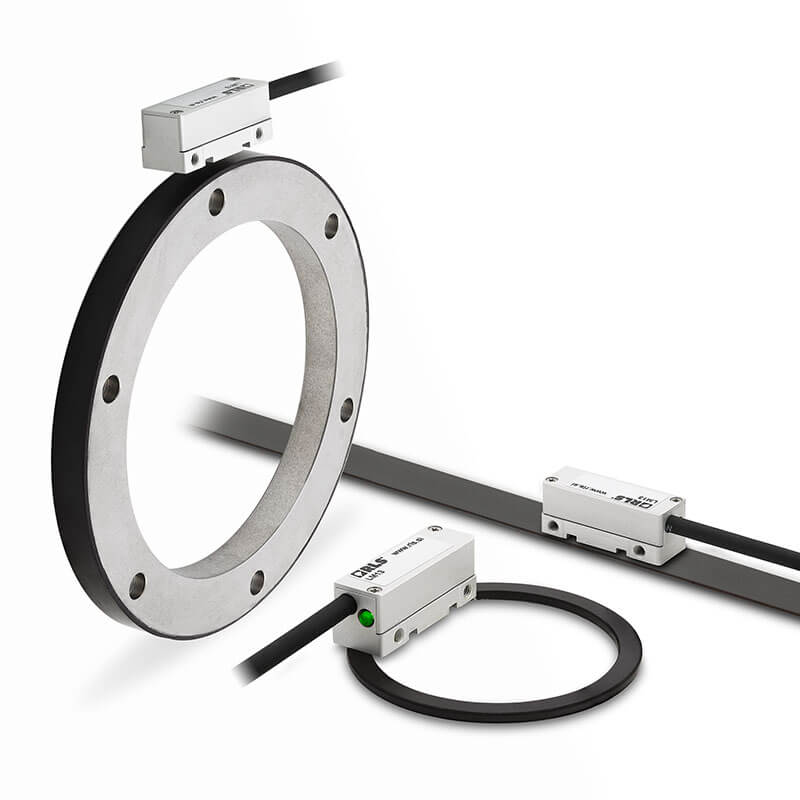

LM13 rotary incremental magnetic encoder system
- Interpolation factors from 8 to 8192
- High speed operation to 20,000 revolutions per minute
- Excellent dirt immunity
RoLin™ rotary incremental magnetic encoder system
- Incremental quadrature
- TTL output signals A, B and index Z
- Resolutions up to 622,592 cpr (76 pole ring)
RLC2HD miniature rotary PCB level incremental magnetic encoder
- Miniature design
- Periodic, bidirectional index impulse
- Resolutions up to 622,592 cpr for rotary applications (76 pole ring)
- High speed operation
RLC2IC miniature rotary PCB level incremental magnetic encoder
- Miniature design
- Incremental quadrature A, B, Z (RS422)
- Resolutions up to 622,592 cpr for rotary applications (76 pole ring)
RLB rotary miniature PCB level incremental magnetic encoder
- Miniature design
- Resolutions up to 622,592 cpr (76 pole ring)
- High speed operation
- Flex cable connection
RMB23 commutation and incremental encoder
- 23 mm diameter circular module
- 5 V power supply
- High speed operation up to 30,000 RPM
- Absolute - up to 12 bit resolution (4,096 cpr)
- Accuracy up to ±0.5°

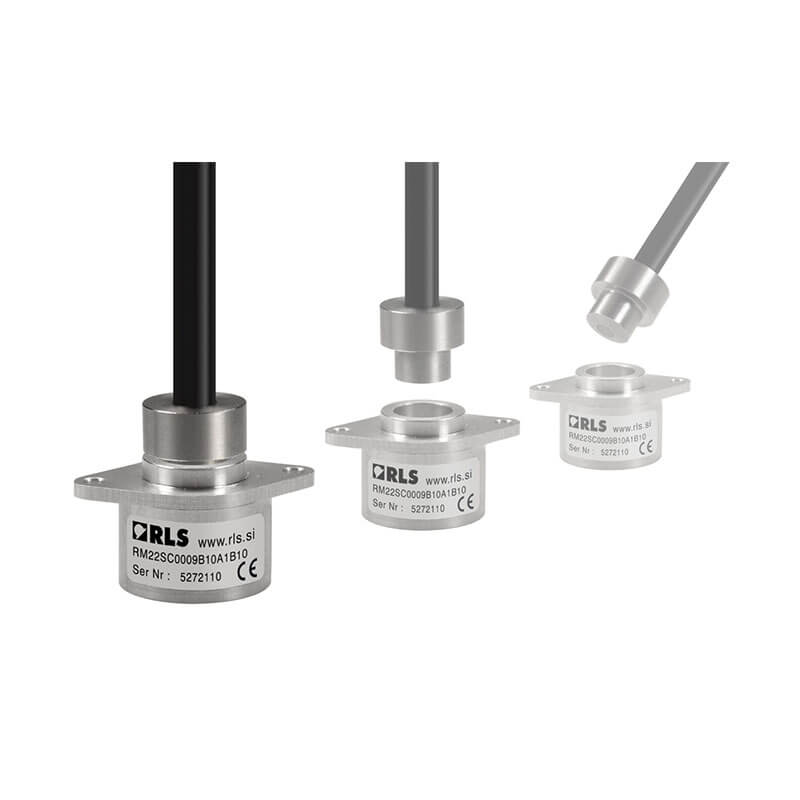

RM22 rotary magnetic modular encoder
- Excellent immunity to IP68
- Non-contact, frictionless design
- High speed operation to 30,000 rpm

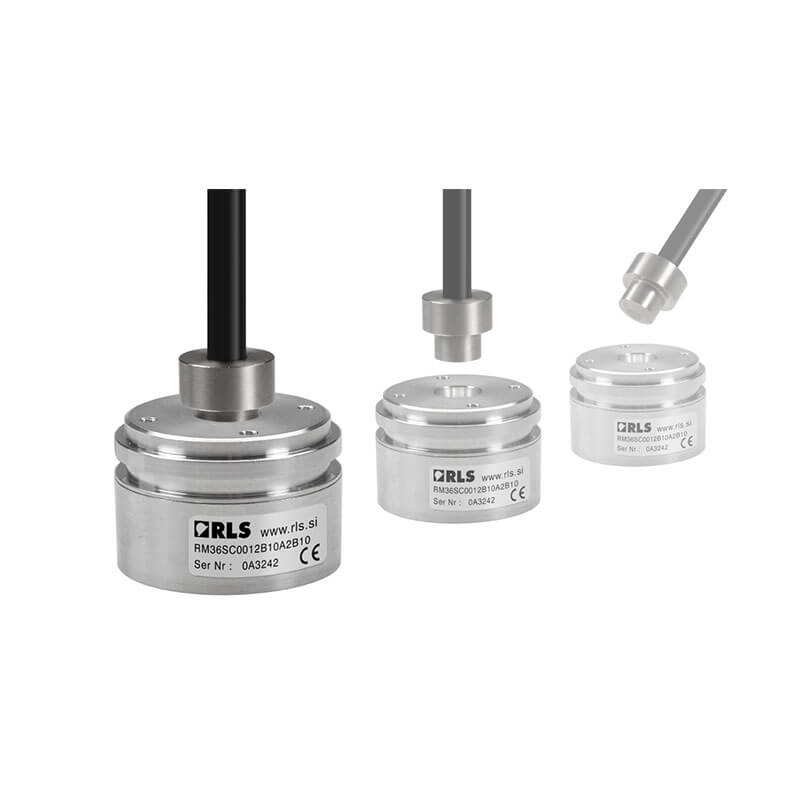

RM36 rotary magnetic modular encoder
- Excellent immunity to IP68
- Non-contact, frictionless design
- High speed operation to 30,000 rpm
- 36 mm diameter body

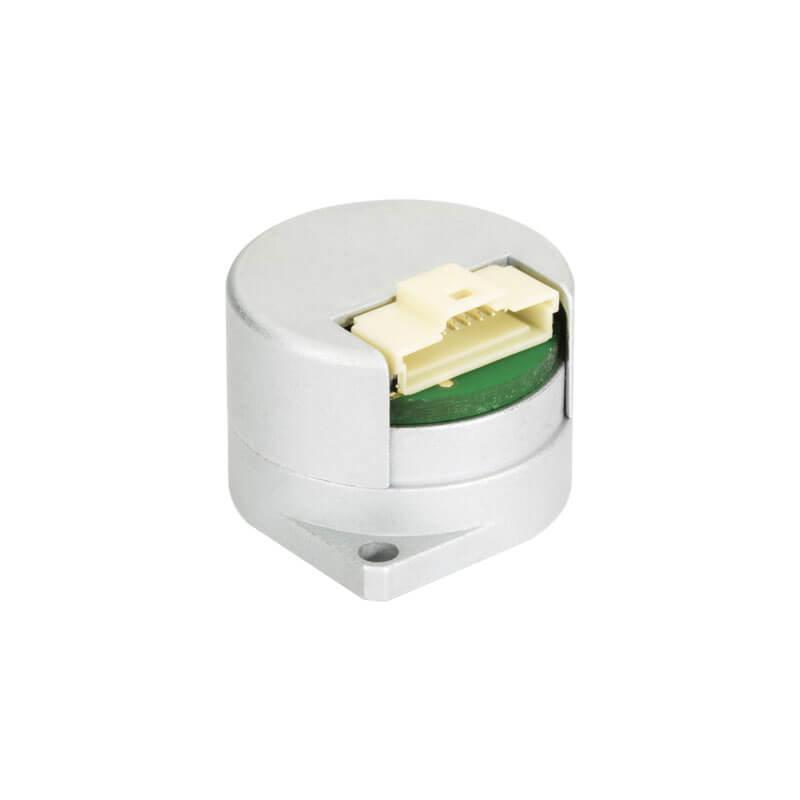

RMC22 commutation and incremental encoder
- Incremental resolution up to 4,096 cpr
- Simple installation and setup
- U, V, W commutation signals with up to 16 poles

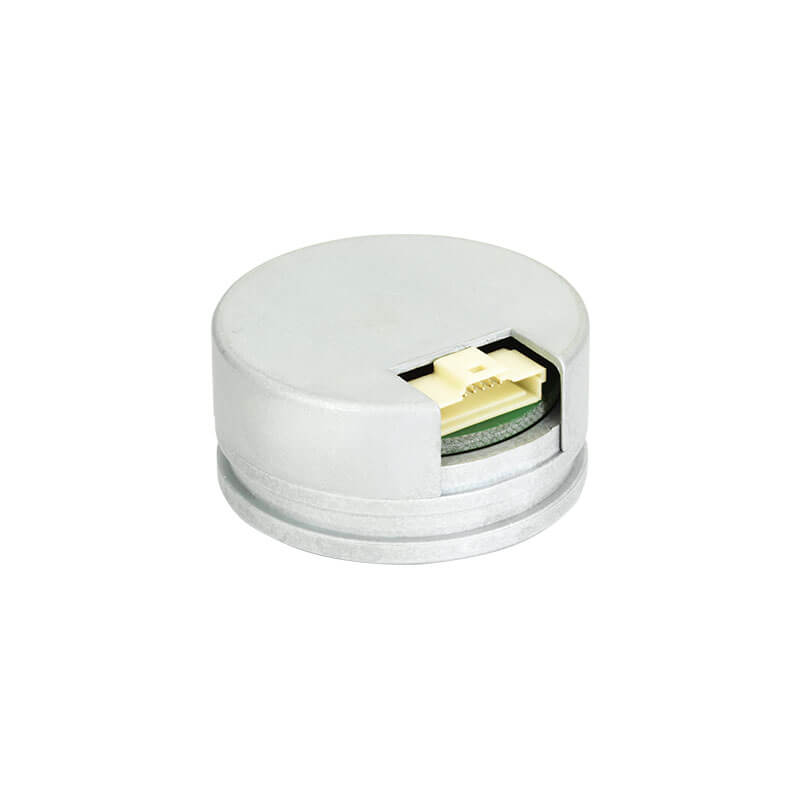

RMC35 commutation and incremental encoder
- Incremental resolution from 256 to 8,192 cpr
- U, V, W commutation signals with up to 16 poles
- Industry standard incremental outputs (RS422)

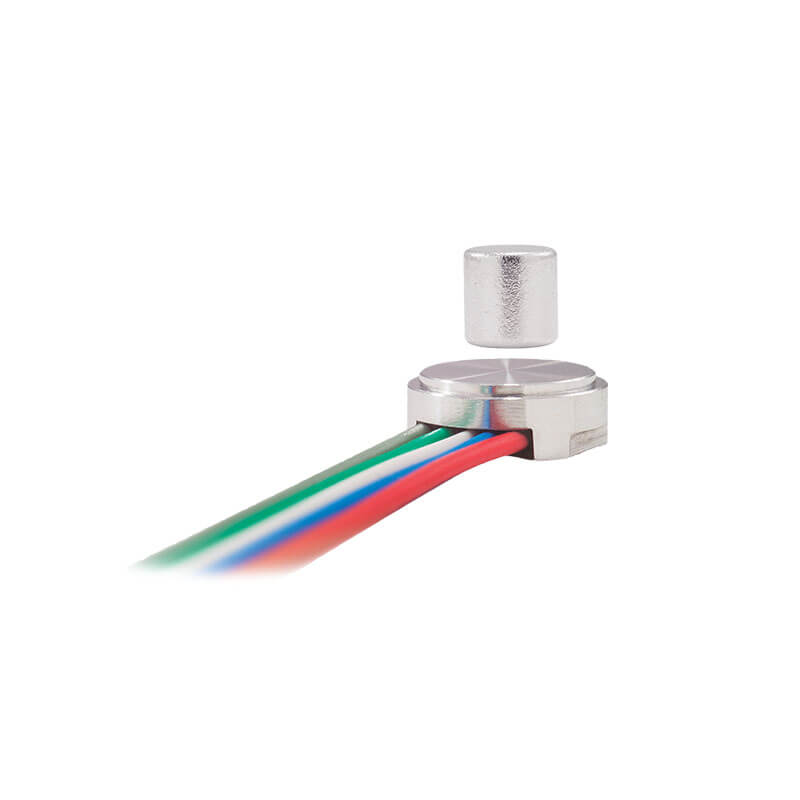

RM08 super small non-contact rotary encoder
- Super small size – 8 mm diameter body
- Non-contact, frictionless design
- 3.3 V or 5 V power supply versions
- High speed operation to 30,000 rpm

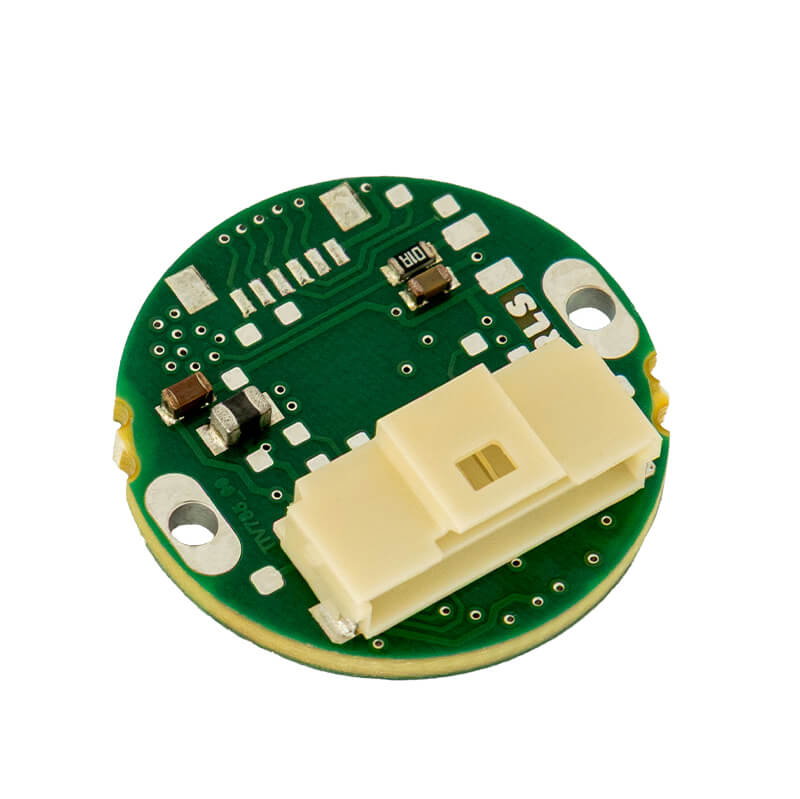

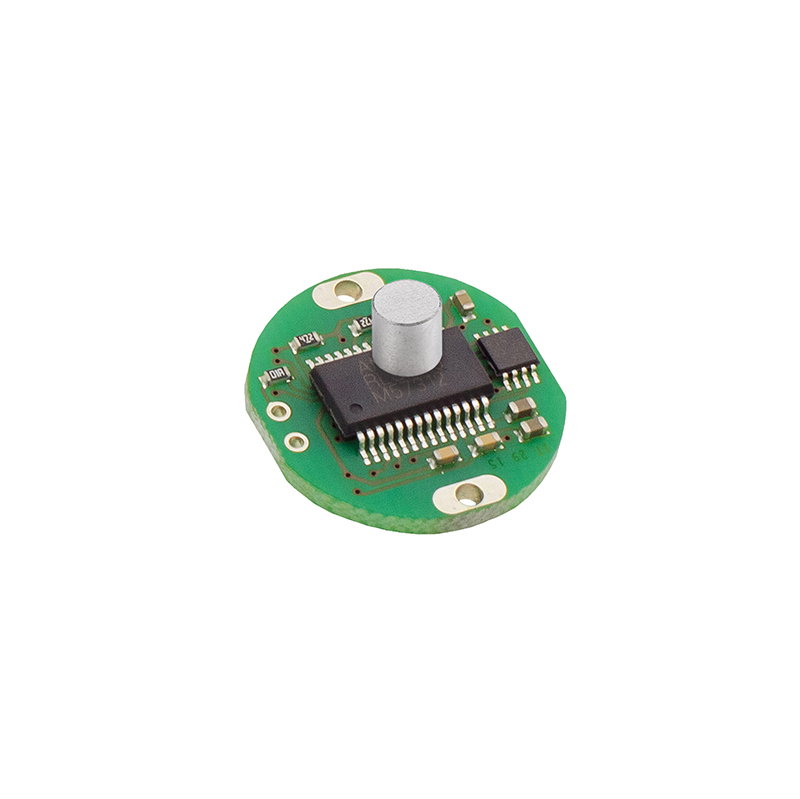

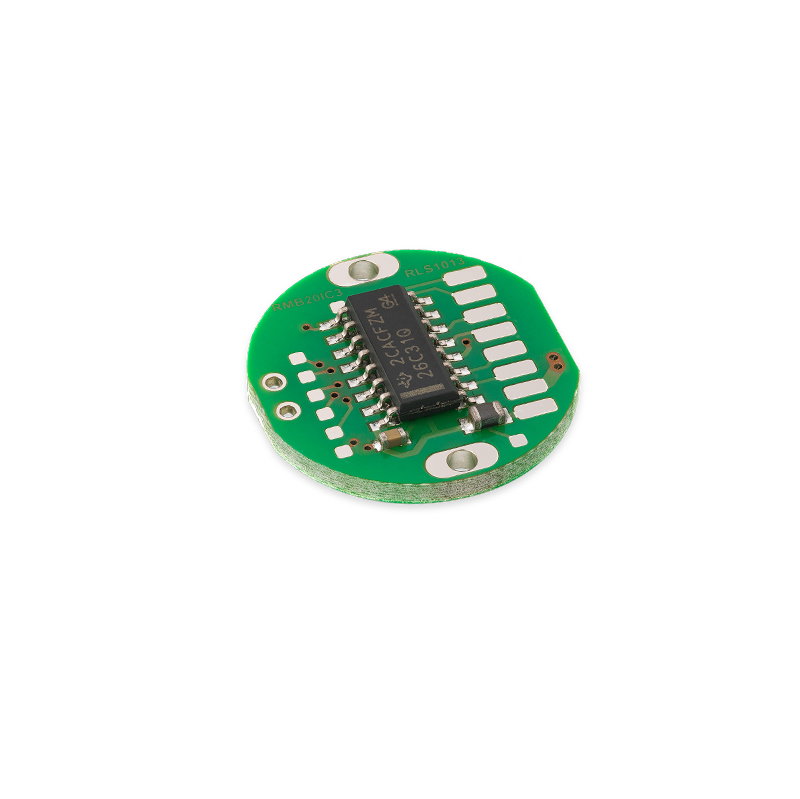

RMB20 rotary magnetic module
- 20 mm diameter circular module
- 5 V power supply
- High speed operation to 30,000 rpm

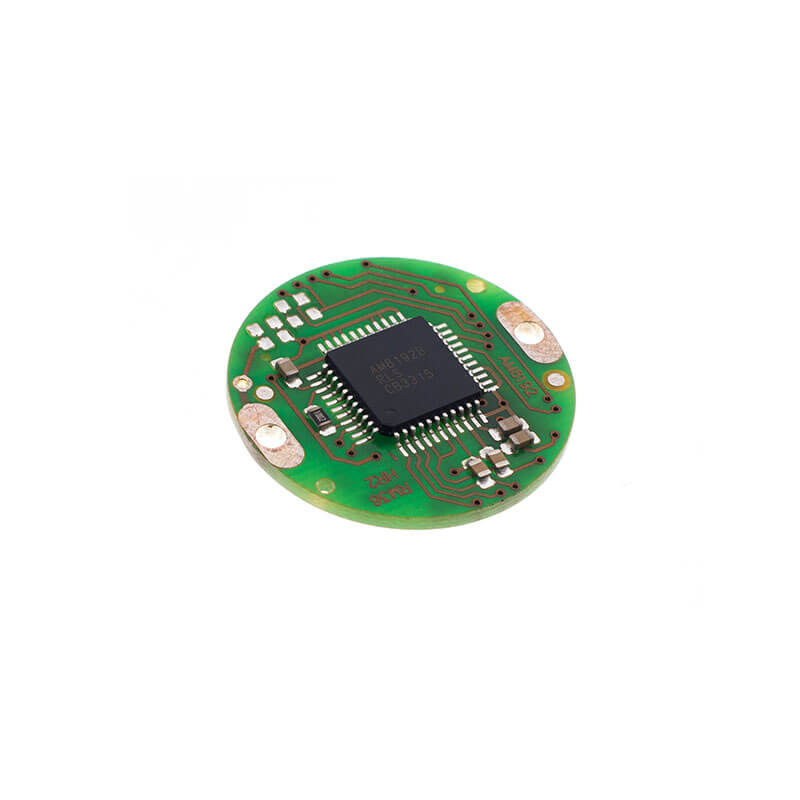

RMB30 rotary magnetic module
- 24 V and 5 V power supply versions
- High speed operation to 30,000 rpm
- Absolute - to 13 bit resolution (8,192 counts per revolution)

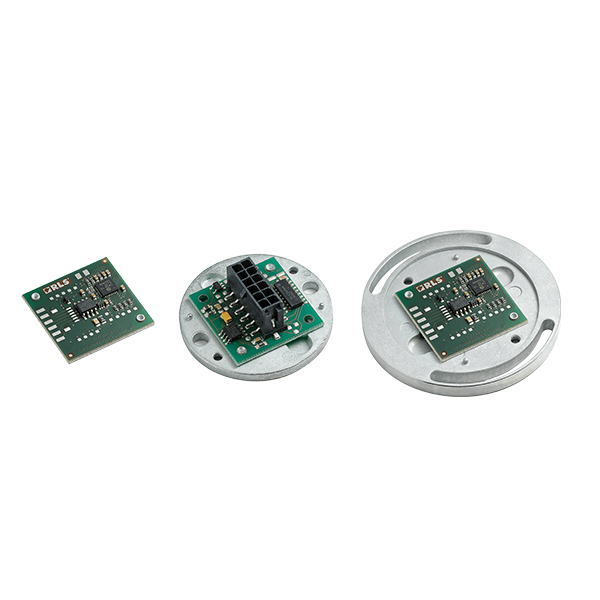

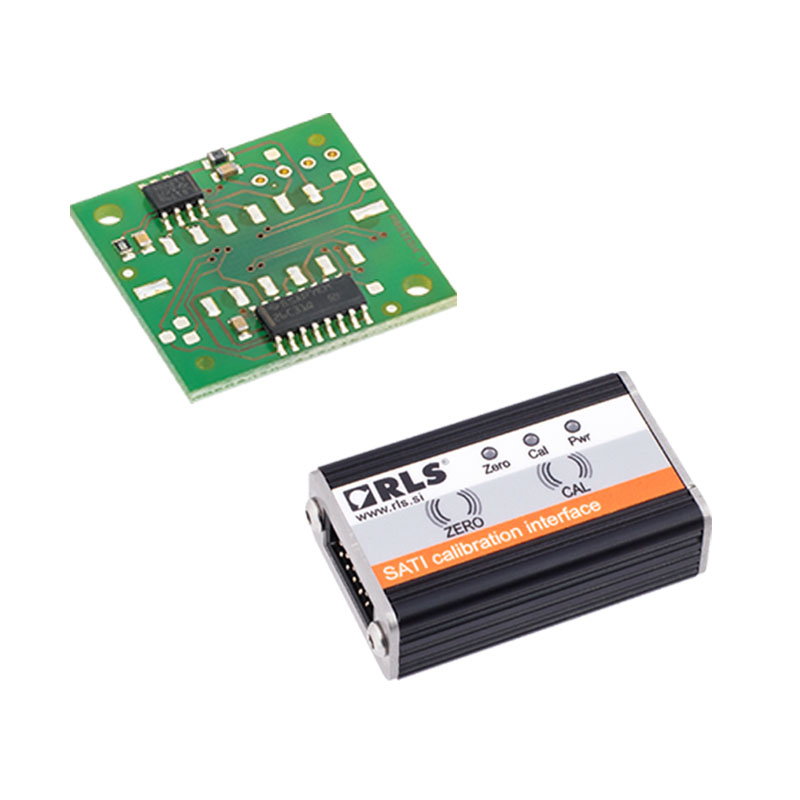

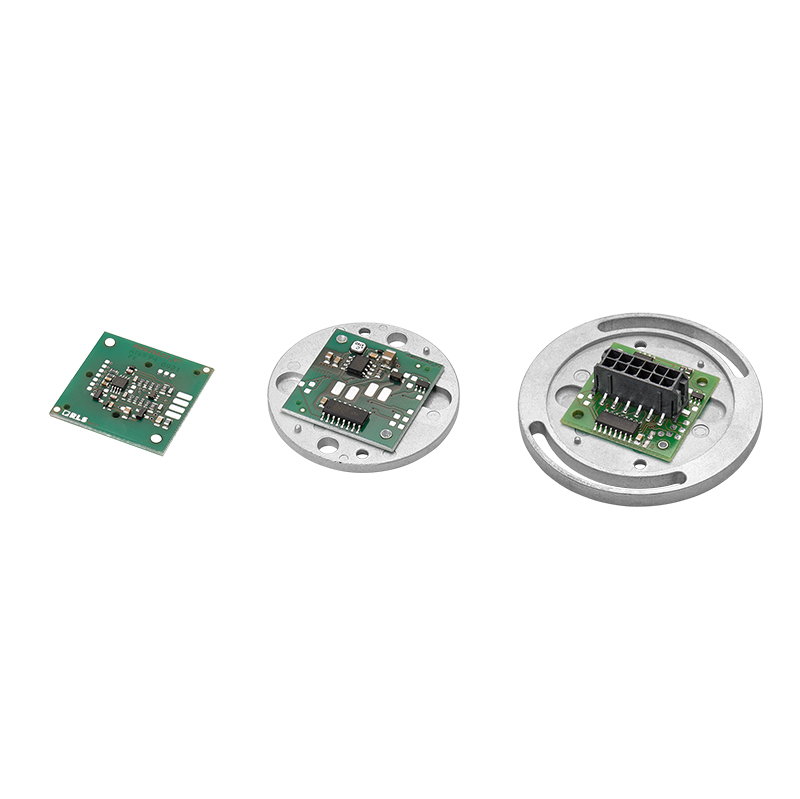

RMB28 rotary magnetic module
- 28 mm square module
- Low cost for OEM integration
- 24 V and 5 V power supply versions
- High speed operation to 60,000 rpm

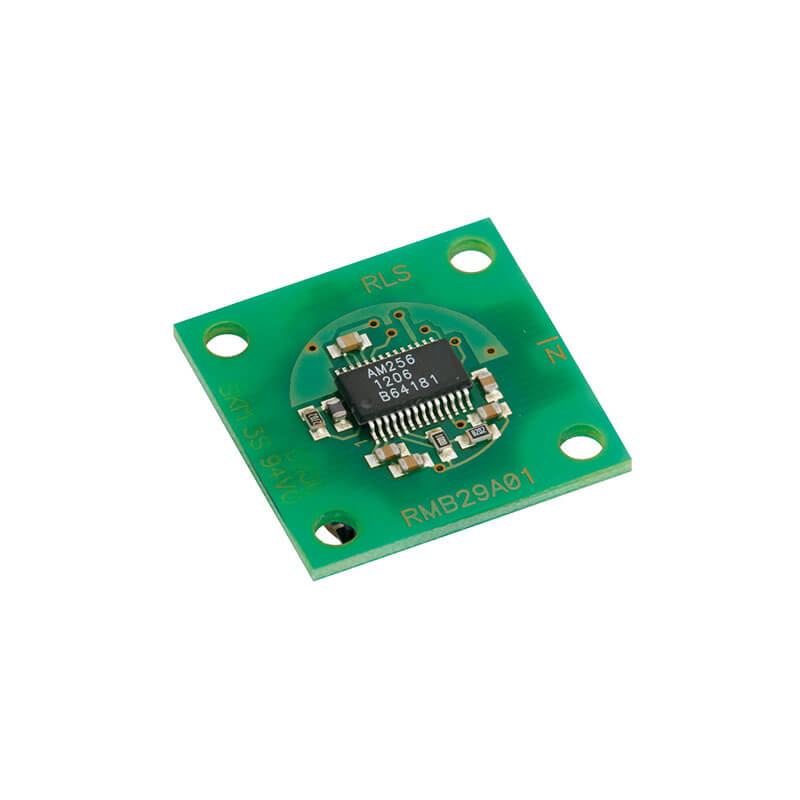

RMB29 rotary magnetic module
- Low cost for OEM integration
- 5 V power supply versions
- High speed operation to 60,000 rpm
RMF44 rotary magnetic module on metal flange
- Easy to install - with self locating design
- Low cost for OEM integration
- 24 V and 5 V power supply versions
- High speed operation to 60,000 rpm

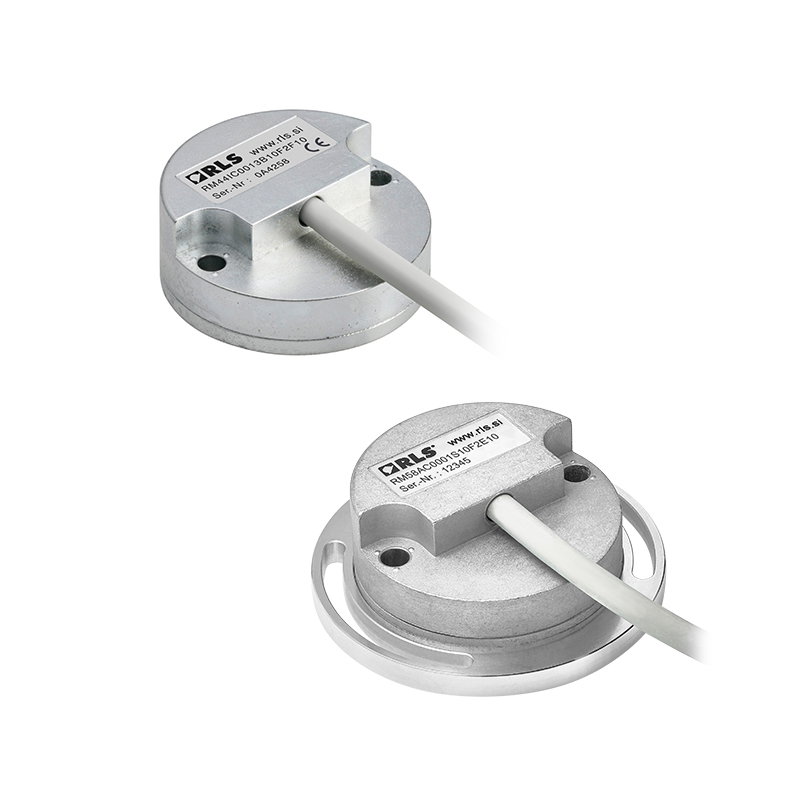

RM44/RM58 - up to 13 bit encoder base unit
- Easy to install - with self locating design
- Low cost for OEM integration
- Fully sealed to IP68
- Incremental & absolute (SSI/BISS) available
RM44 rotary encoder with external zeroing
- With external zeroing
- Easy to install - with self locating design
- Low cost for OEM integration
- Fully sealed to IP68
