RMB29 rotary magnetic module


RMB29 rotary magnetic module

More Views

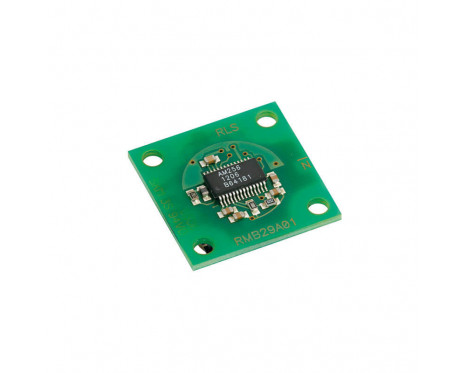

The RMB29 analogue encoder module is designed for direct integration to high volume OEM applications. The low cost 29 mm square PCB is provided with a connector for easy installation.

The encoder module consists of a magnetic actuator and a separate sensor board. Rotation of the magnetic actuator is sensed by a custom encoder chip mounted on the sensor board, and processed to give one sine/cosine wave per revolution.

The RMB29 can be used in a wide range of applications including motor control and industrial automation.

RMB29AC – Analogue sinusoidal
Resolution One sine/cosine wave per revolution
Outputs Signal amplitude: 1.1 V ± 0.2 V
Accuracy Typ. ±0.5°
Hysteresis 0.45°
Maximum speed 60,000 rpm
RMB29Ex – Commutation output
Maximum speed 30,000 rpm
Accuracy Typ. ±0.5°.
Commutation outputs U, V, W
Number of poles for commutation outputs 2, 4, 6, 8, 10, 12, 14, 16
RMB29AC – Analogue sinusoidal
Power supply Vdd = 5 V ± 5 %
Current consumption 13 mA
RMB29Ex – Commutation output
Power supply Vdd = 5 V ± 5 %
Current consumption 30 mA (not loaded)
RMB29AC – Analogue sinusoidal
Operating temperature -40 °C to +105 °C (limited by connector)
All other components used are specified for operation from -40 °C to +125 °C.
RMB29Ex – Commutation output
Operating temperature -40 °C to +105 °C


  • 29 mm square module
  • Low cost for OEM integration
  • 5 V power supply versions
  • High speed operation to 60,000 rpm
  • Analogue sine/cosine output
  • Accuracy to ±0.5°
  • RoHS compliant (lead free)
