Overview

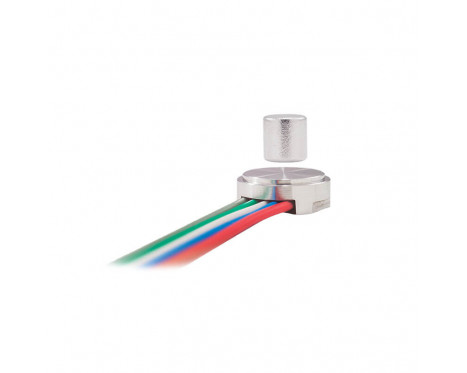

The RM08 is a compact, super small high-speed rotary magnetic encoder designed for use in harsh environments. The noncontact two part design removes the need for seals or bearings ensuring longterm reliability and simple installation.


The RM08 encoder has been designed for direct integration to high volume OEM applications and can be used in a wide range of applications including motor control and industrial automation.

Features

  • Super small size – 8 mm diameter body
  • Accuracy to ±0.3°
  • 3.3 V or 5 V power supply versions
  • High speed operation to 30,000 rpm

Benefits

  • Non-contact, frictionless design
  • Industry standard analogue sinusoidal, incremental, SSI and linear voltage output formats
  • RoHS compliant (lead free)
Configure and Buy Configure Data sheet

Product data

System

Encoder type
Absolute, Incremental
Reading type
Rotary
Max. resolution
12 bit
Accuracy

Electrical

Supply voltage
3.3 V or 5 V
Outputs
Analogue sine/cosine, Incremental, Linear voltage, Synchro serial

Mechanical

Encoder mass
< 2 g (with 200 mm long wires)
Encoder housing material
Aluminium
Magnet mass
0.4 g
Magnet material
SmCo (Sm2Co17), NiCuNi coated
Wire thickness
AWG30

Environmental

IP protection
IP68
Operating and storage temperature
-40 °C to +85 °C
More info in Data sheet
