Overview

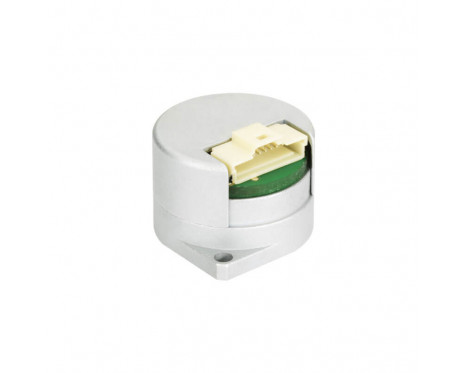

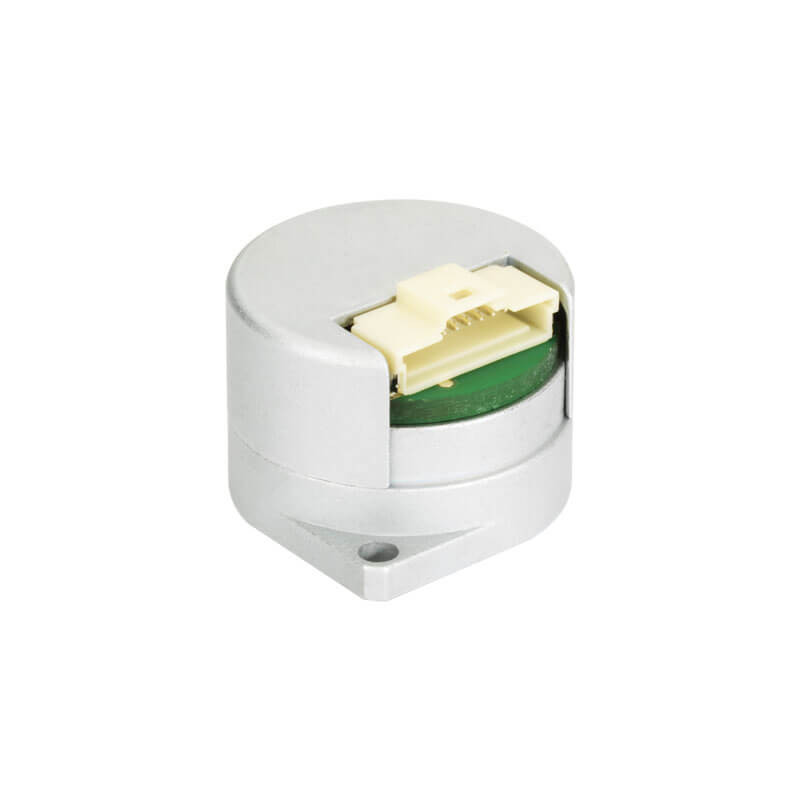

The RMC22 is designed for use in motor feedback applications requiring both A, B, Z incremental and U, V, W commutation signals.
Robust non-contact OnAxis™ sensor technology provides ultimate long term reliability and with simple installation costs of ownership are minimal.
Features
- Incremental resolution up to 4,096 cpr
- U, V, W commutation signals with up to 16 poles
- Industry standard incremental outputs (RS422)
- Operating speed to 30,000 rpm
- Compact - 22 mm diameter body
Benefits
- Simple installation and setup
- Non-contact, frictionless design
- Low inertia
Configure and Buy
Configure
Data sheet
Product data
System
Encoder type
Incremental
Reading type
Rotary
Outputs
Commutation outputs: U, V, W, Incremental, RS422
Environmental
IP protection
IP40
Operating and storage temperature
-40 °C to +105 °C
