Bonded Radial Incremental
Magnetic Rings

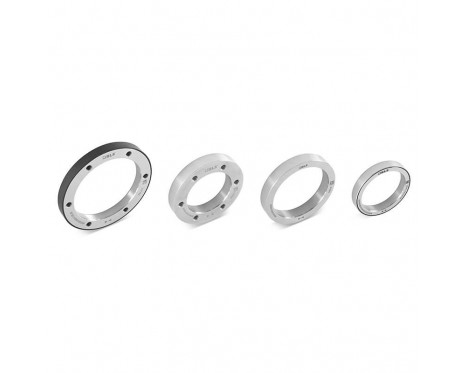

The robust RLS radial magnetic incremental rings consist of an elasto-ferrite layer firmly bonded on a stainless steel hub. The elasto-ferrite layer is magnetised with 2 mm long alternating magnetic poles, which form an incremental magnetic pattern.
Features & Benefits
- Non-contact technology
- Compatible with RLS LM and RoLin family redheads
- Different shaft diameters available
- Unique or periodic reference mark
- High speed operation
- Easy mounting
- Excellent resistance to dirt and dust
Product data
Mechanical
- Coefficient of thermal expansion
- 11.2 x 10-6 K-1
- Material type (ring)
- NBR + ferrite
Environmental
- Operating and storage temperature
- -40 °C to +85 °C
System parts
LM10 Incremental Magnetic Encoder
Show details
RLM Miniature Incremental Magnetic Encoder
Show details
LM13 Incremental Magnetic Encoder
Show details
RLB Miniature Incremental Magnetic Encoder Module
Show details
RLC2IC Miniature Incremental Magnetic Encoder Module
Show details
RLC2HD Miniature Incremental Magnetic Encoder Module
Show detailsDownloads
