Overview

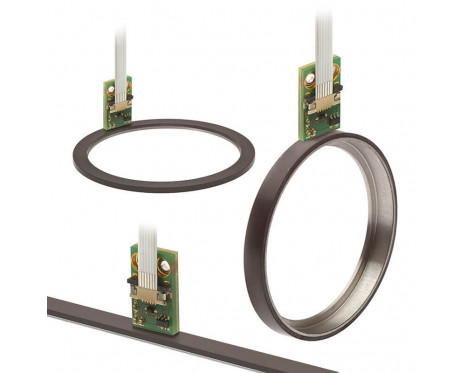

RLB is a PCB level incremental encoder sensor system consisting of a PCB sensor and magnetic scale or ring. It has been designed for embedded motion control applications as a position control loop feedback element in space constraint applications.
Features
- Incremental quadrature TTL output signals A, B, Z
- Periodic, bidirectional index impulse
- Resolutions from 0.244 µm
Benefits
- Miniature design
- High speed operation
- Flex cable connection
- RoHS compliant
Configure and Buy
Configure
Data sheet
Product data
System
Encoder type
Incremental
Reading type
Axial, Linear, Radial, Rotary
Outputs
Incremental
Max. resolution
13 bit
Accuracy
±40 µm
Accuracy grade for MS scales
±40 µm
Repeatability
< 1 μm
Hysteresis
< 3 μm (at 0.3 mm ride height)
Pole length
2 mm
Max. interpolation factor
8,192
Maximum length for MS scale
50 m
Electrical
Supply voltage
5 V ±0.25 V– voltage on readhead
Current consumption
< 20 mA
Connection
JST 06FKZ-SM1
Outputs
Incremental
Mechanical
Mass
0.46 g
Environmental
Shocks (6 ms)
300 m/s2 (IEC 60068-2-27)
Temperature
Operating: –30 °C to +85 °C
Vibrations (55 Hz to 2000 Hz)
300 m/s2 (IEC 60068-2-6)
