Overview

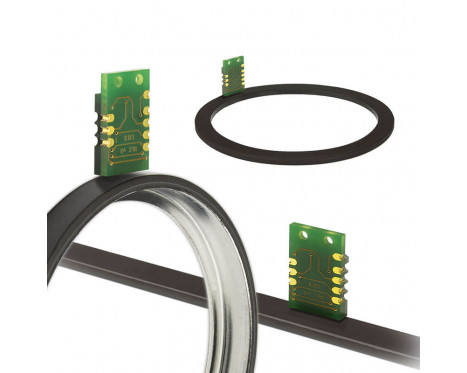

RLC2HD is a PCB level incremental encoder sensor system consisting of a PCB sensor and magnetic scale or ring. It has been designed for embedded motion control applications as a position control loop feedback element in space constraint applications.

Features

  • Incremental quadrature TTL output signals A, B, Z
  • Periodic, bidirectional index impulse
  • Resolutions up to 0.244 µm

Benefits

  • Miniature design
  • High speed operation
  • RoHS compliant
Configure and Buy Configure Data sheet

Product data

System

Encoder type
Incremental
Reading type
Axial, Linear, Radial, Rotary
Outputs
Incremental
Max. resolution
13 bit
Accuracy grade for MS scales
±40 µm
Repeatability
Better than unit of resolution for movement in the same direction
Hysteresis
< 2 µm up to 0.2 mm ride height
Pole length
2 mm
Max. interpolation factor
8,192
Maximum length for MS scale
50 m

Electrical

Supply voltage
5 V ±0.25 V– voltage on readhead
Current consumption
< 20 mA
Outputs
Incremental

Mechanical

Mass
RLC readhead 1.25 g; magnetic scale MS05 30 g/m; for radial and axial rings refer to magnetic ring data sheet

Environmental

RoHS
Compliant with EU Directive 2002/95/EC
Shocks (11 ms)
300 m/s2 (IEC 60068-2-27)
Temperature
Operating: –30 °C to +85 °C, Storage: –40 °C to +85 °C
Vibrations (55 Hz to 2000 Hz)
300 m/s2 (IEC 60068-2-6)
More info in Data sheet
