Overview

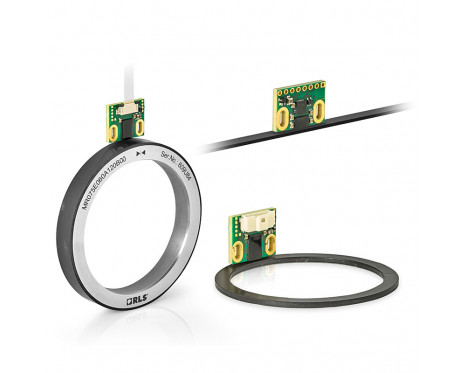

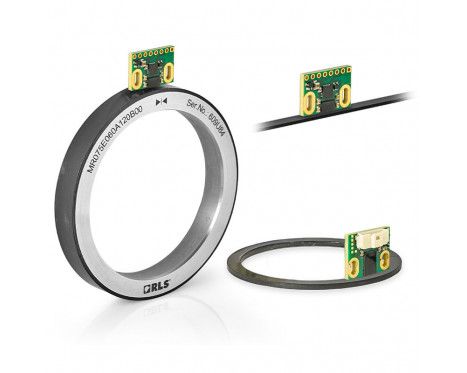

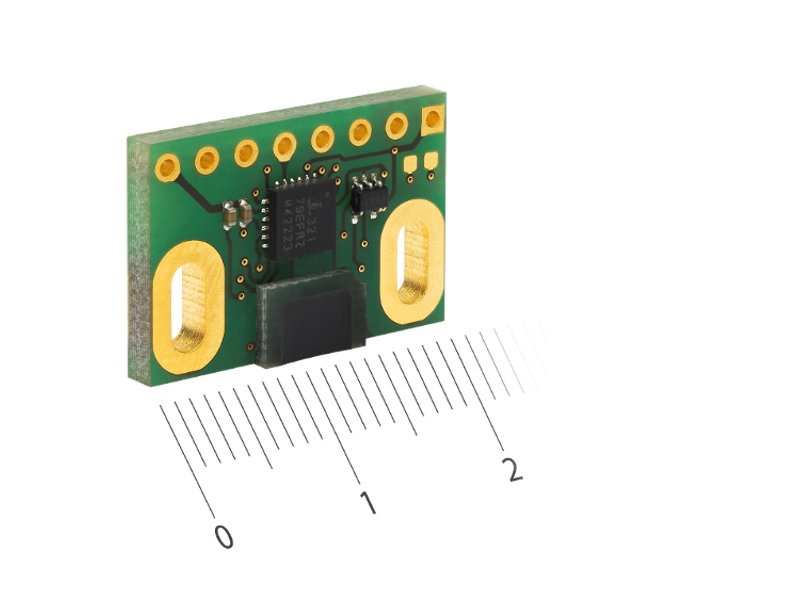

RLB is a PCB level incremental encoder sensor system consisting of a PCB sensor and a magnetic scale or a ring. It has been designed for embedded motion control applications as a position control loop feedback element in space constraint applications.

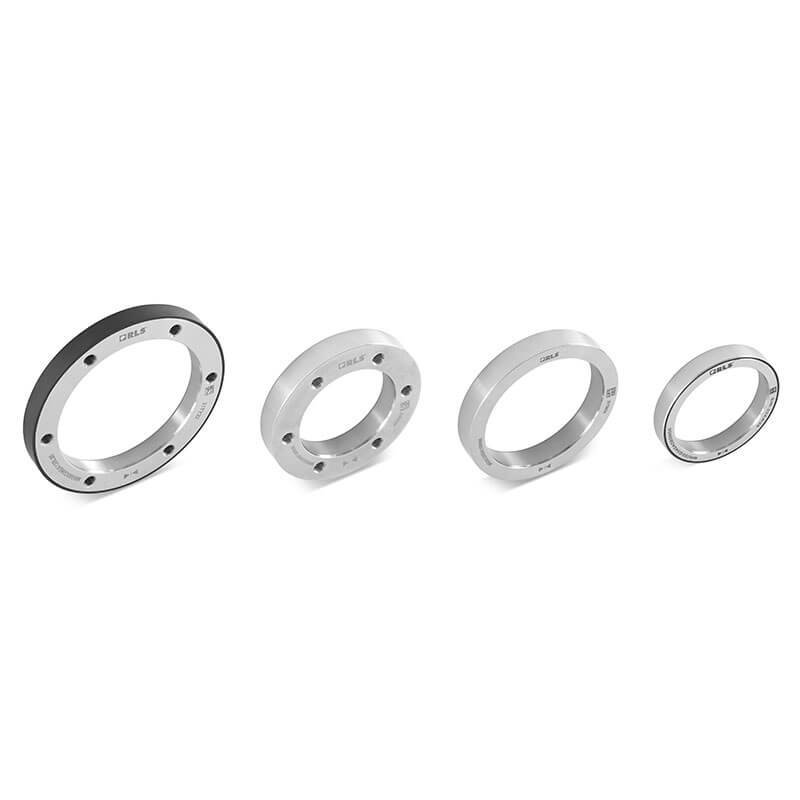

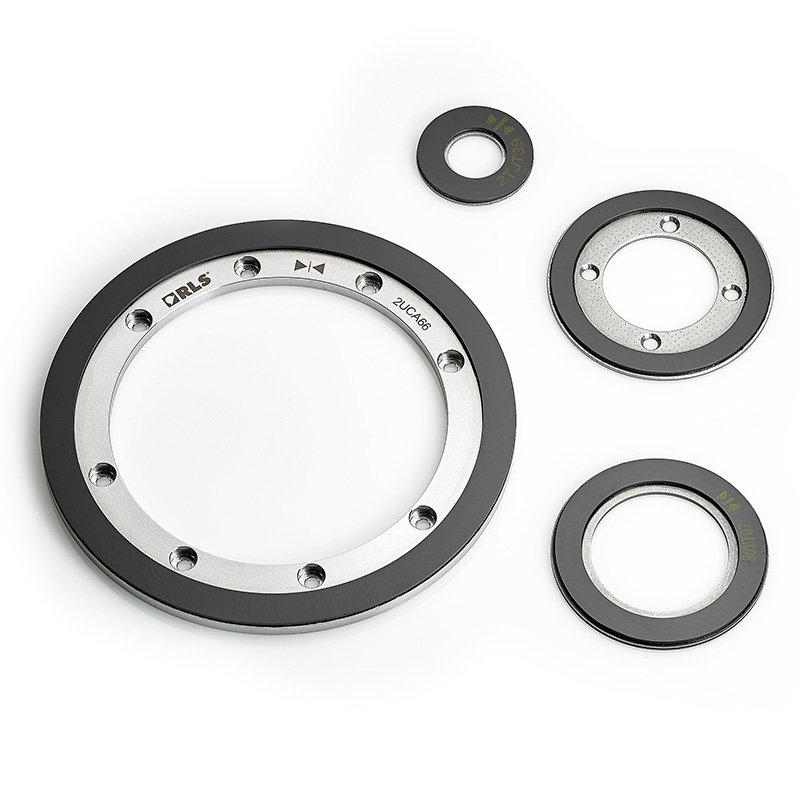

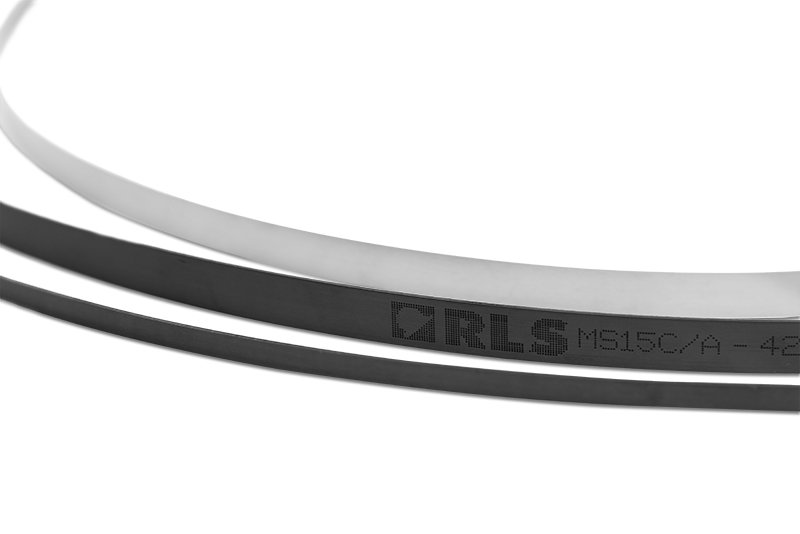

The information carrier is a periodically magnetised scale with a pole length of 2 mm. Radial or axial reading of the ring is possible.

Features

  • Incremental quadrature A, B, Z (RS422)
  • Unique or periodic bidirectional index impulse
  • Resolutions up to 622,592 cpr for rotary applications (76 pole ring)

Benefits

  • Miniature design
  • High speed operation
  • RoHS compliant
Configure and Buy Configure Data sheet

Product data

System

Encoder type
Incremental
Reading type
Axial, Linear, Radial, Rotary
Outputs
Incremental, RS422
Max. resolution
13 bit
Accuracy grade for MS scales
±40 µm
Repeatability
Better than unit of resolution for movement in the same direction
Hysteresis
< 2 µm up to 0.2 mm ride height
Pole length
2 mm
Max. interpolation factor
8,192
Maximum length for MS scale
50 m

Electrical

Supply voltage
5 V ±0.25 V– voltage on readhead
Current consumption
< 30mA
Outputs
Incremental, RS422

Mechanical

Mass
RLC readhead 1.25 g; magnetic scale MS05 30 g/m; for radial and axial rings refer to magnetic ring data sheet

Environmental

RoHS
Compliant with EU Directive 2002/95/EC
Shocks (11 ms)
300 m/s2 (IEC 60068-2-27)
Temperature
Operating: –30 °C to +85 °C, Storage: –40 °C to +85 °C
Vibrations (55 Hz to 2000 Hz)
300 m/s2 (IEC 60068-2-6)
