Overview

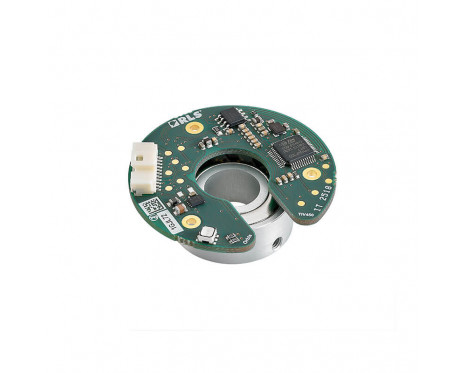

Orbis™ is an absolute, through-hole rotary encoder suitable for applications where a typical OnAxis encoder cannot be mounted at the end of the rotating shaft due to space constraints.

Orbis™ through-hole measuring principle allows customization, with various board and magnet sizes to suit your application.

Features

  • 14 bit resolution
  • Multi-turn counter option
  • Status LED
  • BiSS-C, SSI, SPI, Asynchronous serial and PWM communication

Benefits

  • True absolute encoder
  • Through-hole design enables its mounting anywhere along the shaft
  • Optional self-calibration after assembly
  • Wide installation tolerances
  • Built-in self-diagnostics
  • Resistance to chemicals
  • High speed operation
Configure and Buy Configure Data sheet

Product data

System

Reading type
Axial
Outputs
Asynchronous serial, BiSS-C, PWM, SPI, SSI
Max. resolution
14 bit
Accuracy
±0.25°
Maximum speed
12,000 RPM
Accuracy thermal drift
±0.01°/°C, ETR: ±0.003°/°C
Repeatability
±2 LSB (counts, unidirectional)
Digital hysteresis
±2 LSB (counts)

Electrical

Supply voltage
4.5 V to 5.5 V (at the connector)
Current consumption
Typ. 65 mA (no output load), ETR: Max. 70 mA (no output load)

Mechanical

Actuator material
Anodised aluminium
Magnet material
Neodymium with Ni-Cu-Ni protective layer
Mass
Readhead: 5.3 g

Environmental

External magnetic field
Max ±3 mT (DC or AC) on top side of readhead
Humidity
0 to 70 % non-condensing
Temperature
Operating: 0 °C to +85 °C (ETR: -40 °C to +105 °C), Storage: -40 °C to +105 °C
More info in Data sheet
