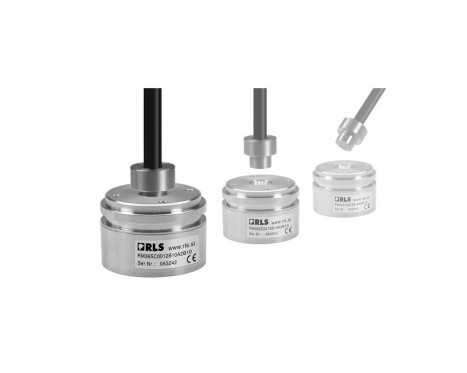

RM36 rotary magnetic modular encoder

More Views

The RM36 is a high-speed magnetic rotary encoder designed for use in harsh industrial environments. The non-contact two part design removes the need for seals or bearings ensuring long-term reliability and simple installation.



The encoder comprises a magnetic actuator and a separate encoder body. Rotation of the magnetic actuator is sensed by a custom encoder chip within the body, and processed to the required output.



The encoder chip processes the signals received to provide resolutions to 13 bit (8192 positions per revolution) with operational speeds to 30,000 rpm. Resolution options include binary and decimal. Output signals are provided in industry standard absolute, incremental or linear formats.



The compact encoder body is just 36 mm in diameter and provides dirt immunity to IP68. The RM36 can be used in a wide range of applications including marine, medical, print, converting, industrial automation, metal working, motor control and instrumentation.

RM36IC – Incremental outputs (5 V supply)
Output signals A, B, Z, A-, B-, Z- (RS422)
Accuracy Typ. ±0.5°
Hysteresis 0.18°
Resolution 80 to 2,048 pulses per revolution (320, 400, 500, 512, 800, 1,000, 1,024, 1,600, 2,000, 2,048, 4,096, 8,192 counts per revolution)
Maximum speed 30,000 rpm
Max. cable length 50 m
RM36SC – Absolute binary synchro-serial interface (SSI) (5 V supply)
SSI output code Natural binary
Data output Serial data (RS422A)
Data input Clock (RS422A)
Accuracy Typ. ±0.5°
Hysteresis 0.18°
Resolution 80 to 2,048 pulses per revolution (320, 400, 500, 512, 800, 1,000, 1,024, 1,600, 2,000, 2,048, 4,096, 8,192 counts per revolution)
Maximum speed 30,000 rpm
Max. cable length 100 m (at 1 MHz)
RM36SI – Absolute binary synchro-serial interface (SSI)  + Incremental, RS422 (5 V supply)
SSI output code Natural binary
Incremental outputs A, B, Z, A-, B-, Z- (RS422)
Data output Serial data (RS422)
Data input Clock (RS422)
Accuracy Typ. ±0.5°
Hysteresis 0.18°
Resolution 80 to 2,048 pulses per revolution (320, 400, 500, 512, 800, 1,000, 1,024, 1,600, 2,000, 2,048, 4,096, 8,192 counts per revolution)
Maximum speed 30,000 rpm
Max. cable length 50 m
RM36I – Incremental outputs (24 V supply)
Output signals Variant IA: A, B, Z, A-, B-, Z- (RS422)
Variant IB: A, B, Z
Accuracy Typ. ±0.5°
Hysteresis 0.18°
Resolution 80 to 2,048 pulses per revolution (320, 400, 500, 512, 800, 1,000, 1,024, 1,600, 2,000, 2,048, 4,096, 8,192 counts per revolution)
Maximum speed 30,000 rpm
Max. cable length 20 m
RM36Vx - Linear voltage output
 Nonlinearity 1%
 Max. cable length 20 m
Maximum speed 30,000 rpm
Output type and electrical variant
    Type I  Type II

φFS

360°

180°

90°

45°

 360°

 180°

 90°

 45°

CW

VA

VB

VC

VD

 VM

 VM

 VP

 VQ

CCW

VE

VF

VG

VH

 VR

 VS

 VT

 VV

RM36Cx - Linear current output (24 V supply)
 Nonlinearity 1%
 Max. cable length 20 m
Maximum speed 30,000 rpm
Output type and electrical variant

φFS

360°

180°

90°

45°

CW

CA

CB

CC

CD

CCW

CE

CF

CG

CH

RM36IC – Incremental outputs (5 V supply)
Power supply Vdd = 5 V ± 5%
Current consumption 35 mA
RM36SC – Absolute binary synchro-serial interface (SSI) (5 V supply)
Power supply Vdd = 5 V ± 5%
Current consumption 35 mA
RM36SI – Absolute binary synchro-serial interface (SSI) + Incremental, RS422 (5 V supply)
Power supply Vdd = 5 V ± 5%
Current consumption 35 mA
RM36I – Incremental outputs (24 V supply)
Power supply Vdd = 8 V to 26 V
Current consumption 50 mA
RM36Vx – Linear voltage output (24 V supply)
Power supply Type I: +20 V to +30 V DC
Type II: ±12 V to ±16 V DC
Current consumption Typ. 40 mA
Output voltage Type I: 0 V to 10 V DC
Type II: -10 V to +10 V DC
Output loading Max. 10 mA
RM36Cx - Linear current output (24 V supply)
Power supply Vdd = +20 V to +30 V DC
Current consumption 50 mA plus output current
Output current 4 mA to 20 mA
Output loading RL = 0 to Vdd/IOUTmax
All output types
Mass Encoder unit 1 m cable (no connector) 85 g. Stainless steel variant 160 g. Magnetic actuator 12 g
Cable Outside diameter 5 mm
All output types
Humidity (for IP64 version)

Storage

95% maximum relative humidity (non-condensing) (IEC 61010-1)
Operating   80% maximum relative humidity (non-condensing) (IEC 61010-1)
Acceleration Operating 500 m/s2        EN 60068-2-7:1993 (IEC 68-2-7:1983)
Shock (non-operating) 1000 m/s2, 6 ms, 1/2 sine    EN 60068-2-27:1993 (IEC 68-2-27:1987)
Vibration (operating) 100 m/s2 max at 55 to 2000 Hz      EN 60068-2-6:1996 (IEC 68-2-6:1995)
EMC compliance EN 61326
Environmental sealing IP64 (IP68 optional)   EN 60529
RM36IC – Incremental outputs (5 V supply)
Operating temperature

-40 °C to +125 °C (IP64)

-40 °C to +85 °C (IP68)

RM36SC – Absolute binary synchro-serial interface (SSI) (5 V supply)
Operating temperature

-40 °C to +125 °C (IP64)

-40 °C to +85 °C (IP68)

RM36SI – Absolute binary synchro-serial interface (SSI) + Incremental, RS422 (5 V supply)
Operating temperature

-40 °C to +125 °C (IP64)

-40 °C to +85 °C (IP68)

RM36I – Incremental outputs (24 V supply)
Operating temperature

-40 °C to +125 °C (IP64)

-40 °C to +85 °C (IP68)

RM36Vx – Linear voltage output (24 V supply)
Operating temperature

-25 °C to +85 °C

RM36Cx - Linear current output (24 V supply)
Operating temperature

-25 °C to +85 °C

Features

  • Excellent immunity to IP68
  • Non-contact, frictionless design
  • High speed operation to 30,000 rpm
  • 36 mm diameter body
  • Stainless steel body option
  • Industry standard absolute, incremental and linear output formats
  • Binary and decimal resolution options
  • Accuracy to ±0.5°
  • Simple installation
  • Low inertia
  • RoHS compliant (lead free)
