LA12
Absolute Magnetic Encoder System with Mitsubishi, Yaskawa and Fanuc Serial Communication

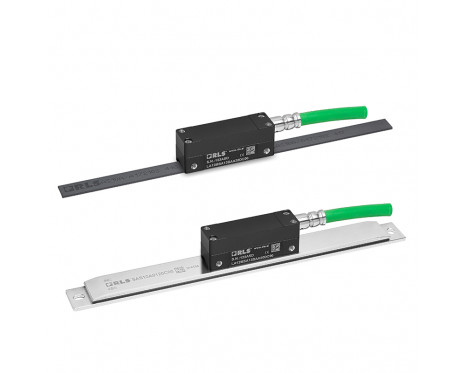

LA12 is a true absolute magnetic encoder system designed for motion control applications as a position and velocity control loop feedback element. The encoder readhead is sealed to IP67 providing reliable operation with resolutions up to 0.244 µm and supports Mitsubishi, Yaskawa and Fanuc serial communication.
Features & Benefits
- True absolute system
- Fanuc, Mitsubishi and Yaskawa serial communication protocols (Half-Duplex, RS-485)
- IP67 (including readhead and SAS10 scale)
- Resolutions up to 0.244 µm
- High accuracy up to ±20 µm/m
- Robust design and great EMC compatibility
- Suitable for highly dynamic control loops
- Resistant to oils, coolants, grease
- Easy installation
Product data
System
- Encoder type
- Linear absolute
- Hysteresis
- < 2 µm up to 0.2 mm ride height
- Max. AS10 scale length
- 16.3 m
- Max. SAS10 scale length
- 1.36 m
Electrical
- Position latency
- < 1µs
Applications
Downloads
- pdf Data sheet: LA12 Absolute magnetic encoder system (LA12D02)
- pdf Data sheet: AS absolute magnetic scale (ASD01)
- pdf Technical article: Accuracy of absolute linear encoder systems
- zip 3D model: LMA10ASC00
- zip 3D model: LA12 with AS10 and SAS10 Magnetic Scales
- zip 3D model: Vertical cable outlet for Mitsubishi output
- zip 3D model: SAS scale lengths
- pdf Declaration of conformity EU LA12
