SAS10
Absolute Magnetic Scale

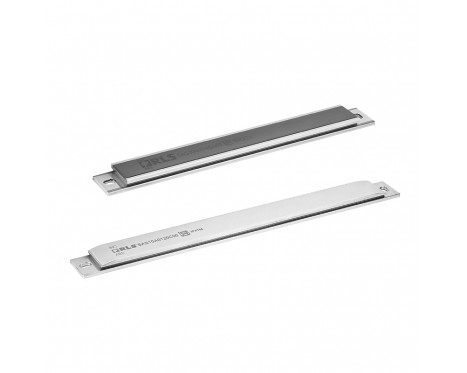

The robust absolute magnetic scale consist of a stainless steel carrier and an elastomer-bonded ferrite. The SAS10 is a solid scale available in predefined lengths. It can be fully enclosed making it suitable for harsh environments where oils or coolants are present.
Features & Benefits
- Scale length 1.36 m
- Fully enclosed IP67
- Compatible with LA11 and LA12 readheads
- Excellent resistance to oils, coolants and grease
- Easy installation
Product data
System
- Accuracy
- ±20 μm/m at 0.2 mm ride height
- Max. scale length
- 1.36 m
Environmental
- Temperature
- Operating: –40 °C to +100 °C, Storage: –40 °C to +75 °C
