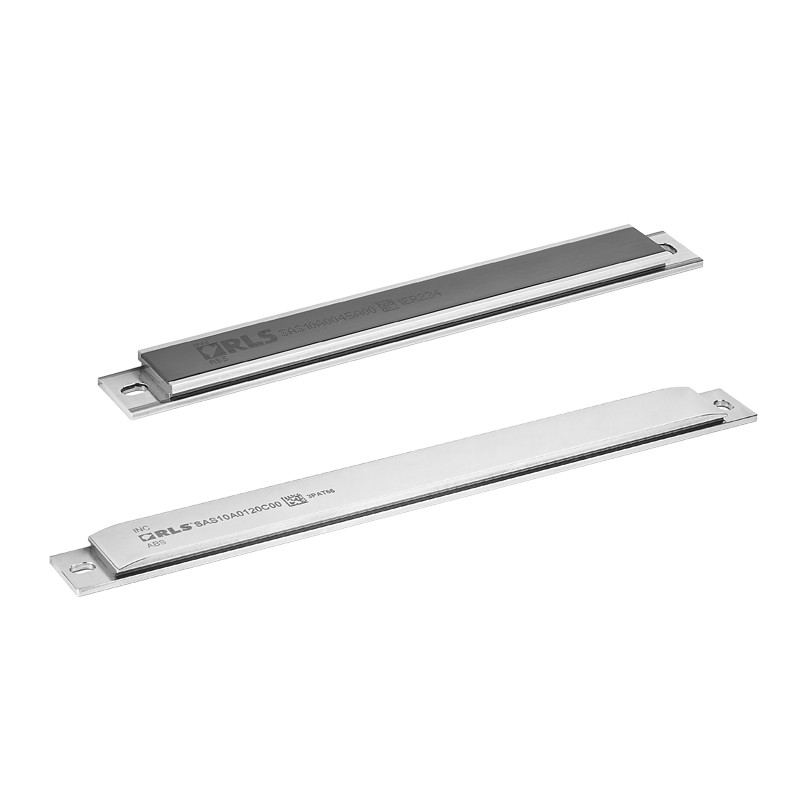

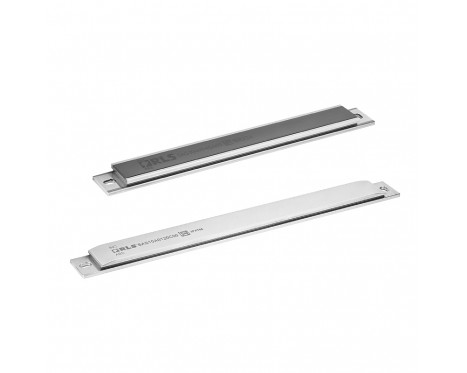

SAS10
絕對式磁性尺


堅固耐用的絕對式磁性尺由不銹鋼承載系統與彈性黏合鐵氧體組成。SAS10 是以預先定義長度提供的實心磁性尺,SAS10 可以完全密封,因此適合用於存在油污或冷卻劑的嚴苛環境。
特點與優勢
- 磁性尺長度 1.36 m
- 完全密封 IP67 防護等級
- 與 LA11 和 LA12 讀頭相容
- 極佳抗由汙、冷卻劑、潤滑油..
- 安裝簡易
產品資料
系統
- 精度
- ±20 μm/m(安裝高度 0.2 mm)
- Max. scale length
- 1.36 m
環境
- 溫度
- 工作溫度:–40 °C 至 +100 °C, 存放條件: –40 °C to +75 °C
下載
- pdfData sheet: LA11 absolute magnetic encoder system (LA11D01)
- pdfData sheet: LA12 Absolute magnetic encoder system (LA12D02)
- pdfData sheet: AS absolute magnetic scale (ASD01)
- pdfInstallation guide: Table of recommended fastener tightening torques
- pdfTechnical article: Accuracy of absolute linear encoder systems
- zip3D model: Washer for SAS/HMS scales
- zip3D model: LA12 with AS10 and SAS10 Magnetic Scales
- zip3D model: SAS scale lengths
- zip3D model: SAS scale lengths (without cover foil)
- pdfDeclaration of conformity EU cover foils
- pdfDeclaration of conformity EU MS AS WL HM MR FI
