AS10
アブソリュートスケール

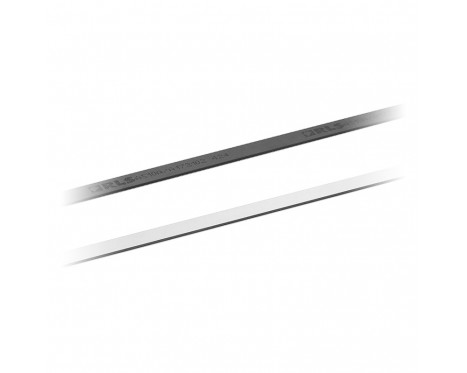

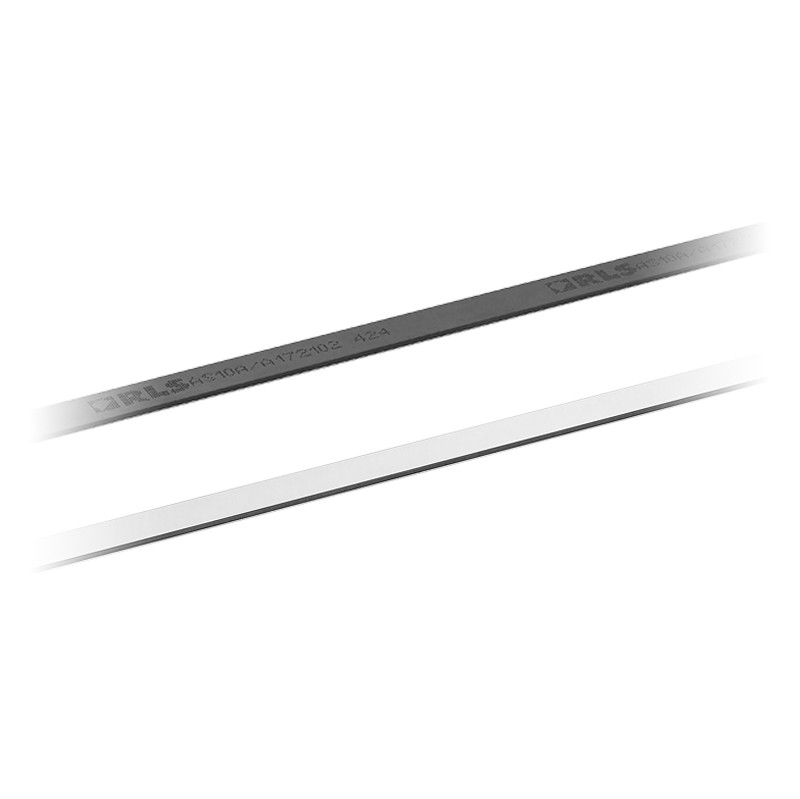

The robust AS absolute magnetic scales consist of a stainless steel carrier and an elastomer-bonded ferrite. The elasto-ferrite layer is magnetised with an incremental magnetic pattern and a pseudo-random code for reliable absolute position sensing.
特長とメリット
- Excellent resistance to dirt, dust and humidity
- Easy installation with adhesive tape, end clamps or track section
- Optional protective cover foil for heavy duty applications
- Partial arc application possibility
- Easy installation
- Track system compatible
- Up to 16,3 m length
製品データ
システム
- 精度
- ±30µm (取付け高さ 0.2mm 時)
- 磁極ピッチ
- 2mm
- Max. length for AS scale
- 16.3m
環境
- 温度
- 動作時: –40℃～+100℃, 保管時: -40℃～+60℃
システム部品
ダウンロード
- pdfData sheet: LA11 absolute magnetic encoder system (LA11D01)
- pdfData sheet: AS absolute magnetic scale (ASD01)
- pdfInstallation guide: Table of recommended fastener tightening torques
- pdfApplication note: CRC calculation (CRCD01)
