概要

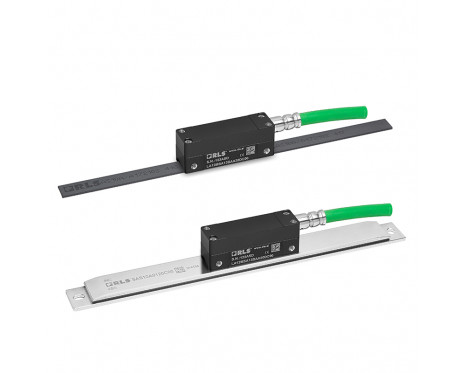

LA12 is a true absolute magnetic encoder system designed for motion control applications as a position and velocity control loop feedback element. The encoder readhead is sealed to IP67 providing reliable operation with resolutions up to 0.244 µm and supports Mitsubishi, Yaskawa and Fanuc serial communication.

機能

  • True absolute system
  • Fanuc, Mitsubishi and Yaskawa serial communication protocols (Half-Duplex, RS-485)

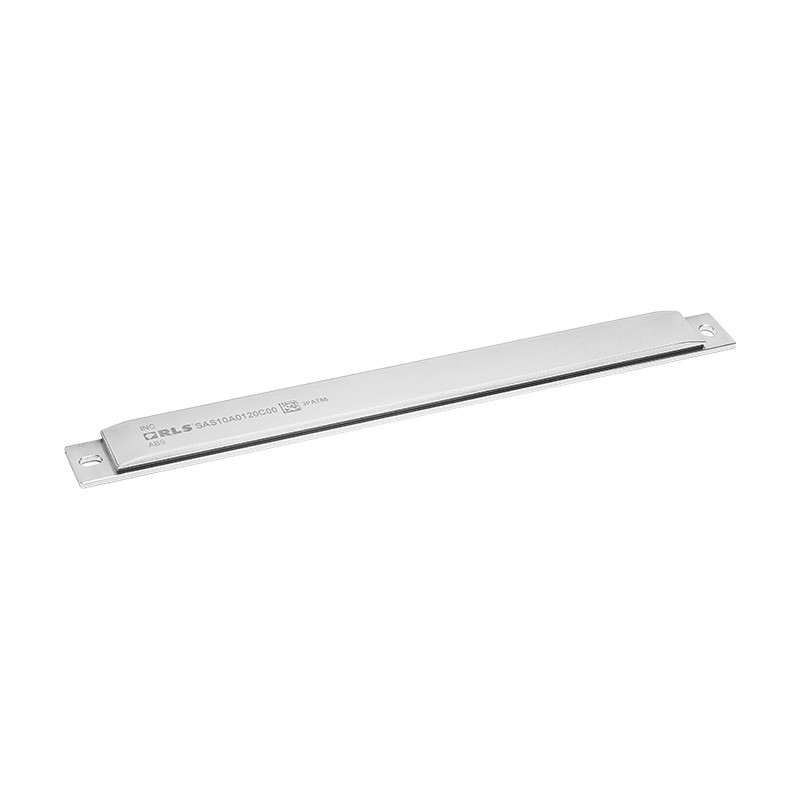

  • IP67 (including readhead and SAS10 scale)
  • Resolutions up to ~0.244 µm
  • High accuracy up to ±20 µm/m

メリット

  • Robust design and great EMC compatibility
  • Suitable for highly dynamic control loops
  • Resistant to oils, coolants, grease
  • Easy installation
構成して購入 Configure データシート

製品データ

システム

エンコーダタイプ
リニアアブソリュート
ヒステリシス
< 2 µm up to 0.2 mm ride height
Max. AS10 scale length
16.3 m
Max. SAS10 scale length
1.36 m

電気

Position latency
< 1µs
詳細はデータシート参照
