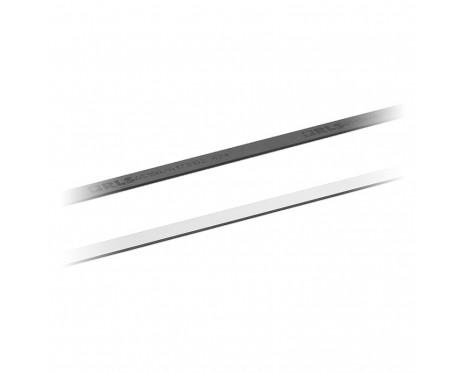

AS10
絕對式編碼器
The robust AS absolute magnetic scales consist of a stainless steel carrier and an elastomer-bonded ferrite. The elasto-ferrite layer is magnetised with an incremental magnetic pattern and a pseudo-random code for reliable absolute position sensing.
特點與優勢
- Excellent resistance to dirt, dust and humidity
- Easy installation with adhesive tape, end clamps or track section
- Optional protective cover foil for heavy duty applications
- Partial arc application possibility
- Easy installation
- Track system compatible
- Up to 16,3 m length
產品資料
系統
- 精度
- ±30 μm/m（安裝高度 0.2 mm）
- 極長度
- 2 mm
- Max. length for AS scale
- 16.3 m
環境
- 溫度
- 工作溫度：–40 °C 至 +100 °C, 存放條件：–40 °C 至 +60 °C
系統部件
