概觀

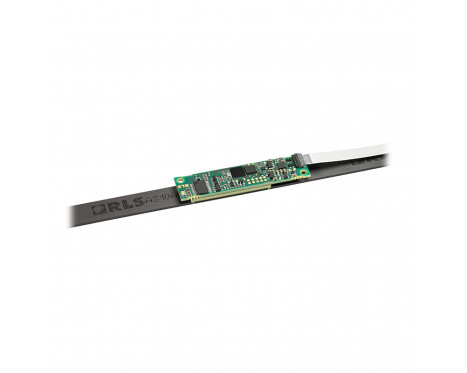

LF11 is a board-level absolute linear magnetic encoder system designed for motion control applications as a position and velocity control loop element.

The miniature design and low weight of the encoder system make it suitable for applications with limited space in relatively clean environments.

特徵

  • True absolute system
  • Small footprint 50 × 12 × 5 mm
  • Resolutions up to ~0.244 μm
  • Axis lengths up to 16.3 m
  • BiSS C unidirectional

優點

  • Suitable for highly dynamic control loops
  • Speeds up to 7 m/s at 0.976 μm resolution
配置與購買 Configure

產品資料

系統

編碼器類型
絕對式
讀取類型
線性
系統精度
±30 μm/m at 0.2 mm ride height
重複性
<1 μm
遲滯
< 2 µm (安裝高度最高至 0.2 mm)
極長度
2 mm

電氣

供應電壓
5 V ±5 %
Set-up time
< 1 s
電流消耗
< 160 mA at 5 V power supply

環境

濕度
0 至 70% 未凝結
溫度
Storage: –20 °C to +85 °C, 工作溫度:0 °C 至 +55 °C
