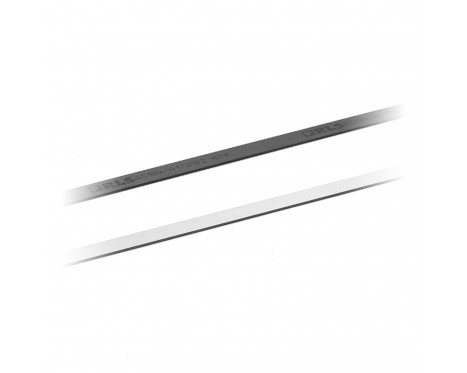

The robust AS absolute magnetic scales consist of a stainless steel carrier and an elastomer-bonded ferrite. The elasto-ferrite layer is magnetised with an incremental magnetic pattern and a pseudo-random code for reliable absolute position sensing.

Merkmale

  • Excellent resistance to dirt, dust and humidity
  • Easy installation with adhesive tape, end clamps or track section
  • Optional protective cover foil for heavy duty applications
  • Partial arc application possibility

Vorteile

  • Easy installation
  • Track system compatible
  • Up to 16,3 m length
Konfigurieren und kaufen Konfigurieren Datenblatt

Produktdaten

System

Genauigkeit
±40 µm
Polteilung
2 mm
Max. length for AS scale
16,3 m

Umwelt

Temperatur
Lagerung: -40 °C bis +60 °C, Operating: –40 °C to +100 °C (scale applied on the linear guide), –40 °C to +80 °C (scale applied on the curved surface)
Weitere Informationen finden Sie im Datenblatt
