SAS19
Absolute magnetic scale

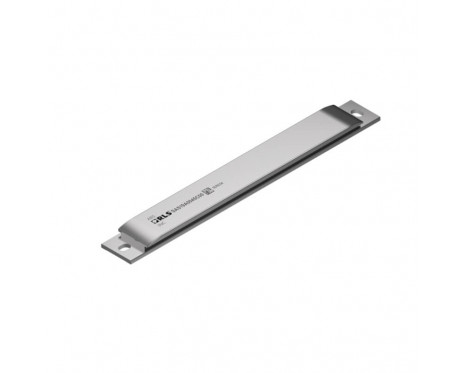

The robust absolute magnetic scale consists of a stainless steel carrier and an elastomer-bonded ferrite. The SAS19 is a solid scale available in predefined lengths. It can be fully enclosed making it suitable for harsh environments where oils or coolants are present. It is designed for compatibility with Artos readheads.
Features & Benefits
- Scale length up to 1.36 m
- Fully enclosed IP67
- Compatible with Artos readheads
- Excellent resistance to oils, coolants and grease
- Easy installation
Product data
System
- Accuracy
- ±6 μm/m at 0.2 mm ride height
- Max. scale length
- 1.36 m
Environmental
- Temperature
- Operating: –40 °C to +100 °C, Storage: –40 °C to +75 °C
System parts
Downloads
- pdfData sheet: Artos™ Board Level Rotary and Linear Absolute Magnetic Encoder System (DBD01)
- pdfData sheet: Artos™ Housed Rotary and Linear Absolute Magnetic Encoder System (DRD01)
- pdfData sheet: AS absolute magnetic scale (ASD01)
- pdfApplication note: LA11 and Artos absolute encoders - Connection to different controllers (APP02)
- zip3D model: Washer for SAS/HMS scales
- zip3D model: SAS scale lengths
- zip3D model: SAS scale lengths (without cover foil)
- pdfEC / UK / NI Declaration of conformity: Artos
