概觀

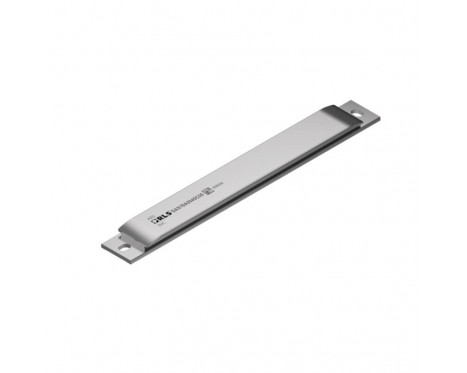

The robust absolute magnetic scale consists of a stainless steel carrier and an elastomer-bonded ferrite. The SAS19 is a solid scale available in predefined lengths. It can be fully enclosed making it suitable for harsh environments where oils or coolants are present. It is designed for compatibility with Artos readheads.

特徵

  • Scale length up to 1.36 m
  • Fully enclosed IP67
  • Compatible with Artos readheads

優點

  • Excellent resistance to oils, coolants and grease
  • Easy installation
配置與購買 Configure 規格資料表

產品資料

系統

精度
±6 μm/m(安裝高度 0.2 mm)
Max. scale length
1.36 m

環境

溫度
存放條件: –40 °C to +75 °C, 工作溫度:–40 °C 至 +100 °C
規格資料表提供詳細資訊

下載

$13.02
