概觀

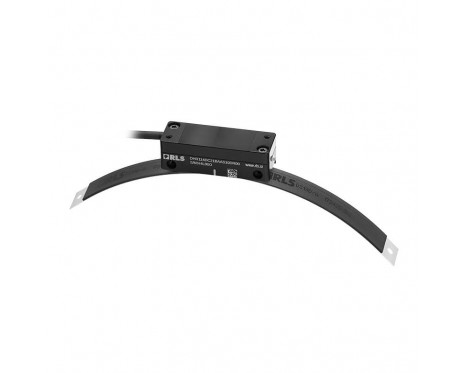

Artos™ is an absolute magnetic encoder system designed for motion control applications as a feedback element for angle/position and velocity control loops. A highly reliable measurement principle and processing provide low position latency, high resolution and angular/linear velocity. The robust design protects the readhead from liquid ingress and high temperatures, so it remains undamaged even in extremely contaminated and hot environments.
優點
- True absolute system
- High accuracy and resolution
- Suitable for highly dynamic control loops
- Robust design and great EMC compatibility
- SSI and BiSS communication protocols
- Compatible with linear and partial-arc scales
- Wide installation tolerances
- IP67 protection class
配置與購買
Configure
規格資料表
產品資料
系統
編碼器類型
線性絕對式
輸出
BiSS-C, SSI
解析度
Up to 0.122 μm
Compatibility
DS19 absolute magnetic scale
電氣
供應電壓
5 V to 30 V
環境
IP 防護等級
IP67
工作及存放條件
-20 °C to +85 °C
Speed calculator
Calculate maximum speed and determine product parameters based on your application.
