DS19
Absolute magnetic scale for Artos™ encoder
The DS19 absolute magnetic scale is engineered for high precision and durability, featuring a stainless steel carrier bonded with an elastomer-ferrite composite. This 15 mm wide scale is designed for flexibility and strength, ensuring it can withstand demanding environments while providing accurate measurements. Ideal for precise positioning tasks, the DS19 is a reliable choice for a wide range of industrial applications.
Features & Benefits
- Highly resistant to environmental factors.

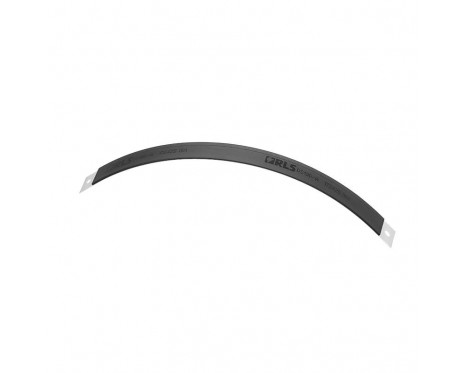

- Ideal for partial-arc measurements.
- Simplified installation with multiple options.
Product data
System
- Accuracy
- ±10 μm/m (options 001 and 002), ±15 μm/m (option 003)
- Max. scale length
- 32 m
Environmental
- Temperature
- Operating: –40 °C to +100 °C, Storage: –40 °C to +60 °C
System parts
