概述

The DS19 absolute magnetic scale is engineered for high precision and durability, featuring a stainless steel carrier bonded with an elastomer-ferrite composite. This 15 mm wide scale is designed for flexibility and strength, ensuring it can withstand demanding environments while providing accurate measurements. Ideal for precise positioning tasks, the DS19 is a reliable choice for a wide range of industrial applications.

优点

  • Highly resistant to environmental factors.

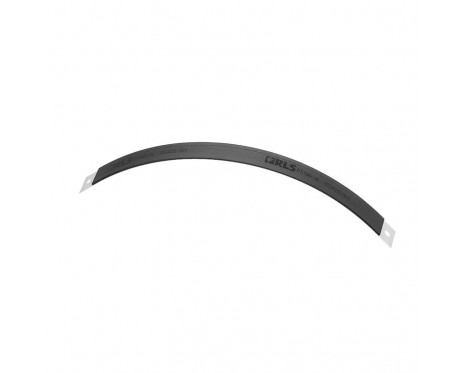

  • Ideal for partial-arc measurements.
  • Simplified installation with multiple options.
配置并购买 配置 规格手册

产品数据

系统

精度
±10 μm/m
Max. scale length
2 m

环境

温度
存储:-40 °C至+60 °C, 工作:-40 °C至+100 °C
更多信息请参阅规格手册

Speed calculator

Calculate maximum speed and determine product parameters based on your application.
