DS19
適用於 Artos™ 編碼器的絕對式磁性尺


DS19 絕對式磁性尺專為高精準度和耐用度設計,具備與彈性鐵氧體黏合的不鏽鋼承載系統。這個 15 mm 寬的磁性尺具備彈性和強度,以確保可以承受嚴苛的環境,同時提供精確的量測結果。DS19 適用於精準定位工作,是各種工業應用的可靠選擇。
特點與優勢
- 對環境因素具備高抗性。

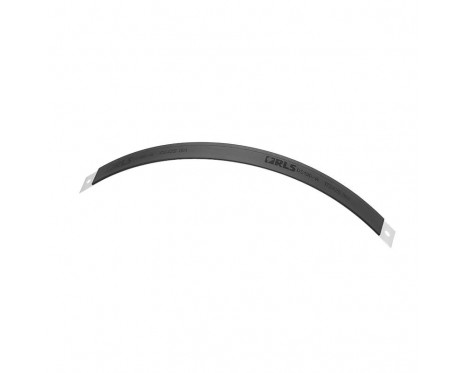

- 適用於部分弧線量測。
- 透過多個選項簡化安裝。
產品資料
系統
- 精度
- ±10 μm/m (options 001 and 002), ±15 μm/m (option 003)
- Max. scale length
- 32 m
環境
- 溫度
- 工作溫度:–40 °C 至 +100 °C, 存放條件:–40 °C 至 +60 °C
