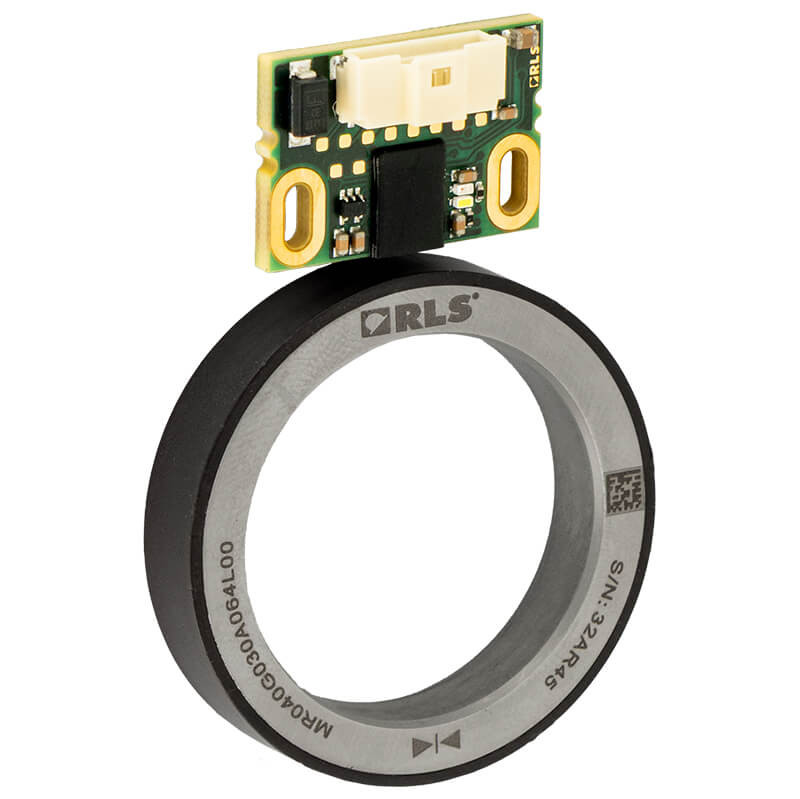

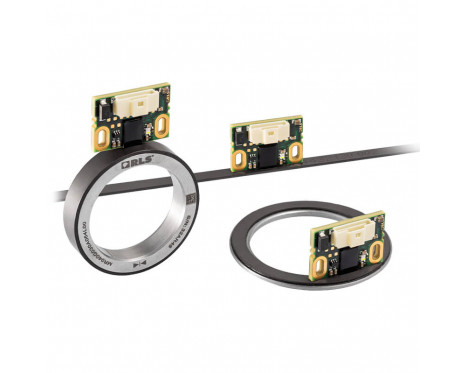

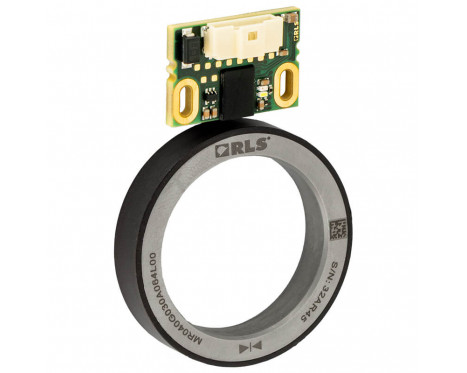

RLC2IA
Miniature Incremental Magnetic Encoder Module

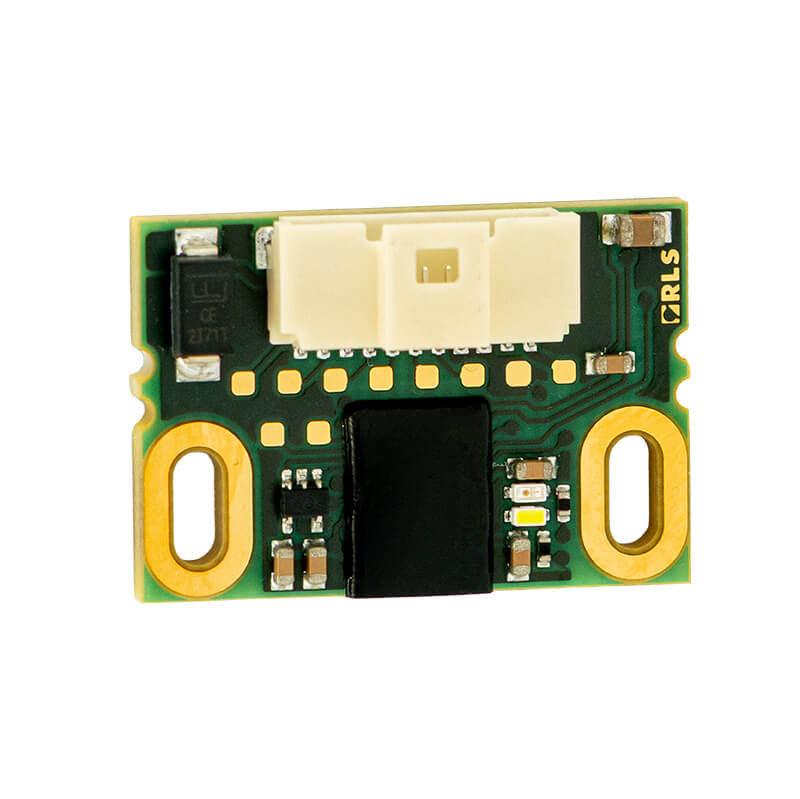

RLC2IA is a PCB-level encoder with a 24 V incremental push-pull output signal.
Encoder system consists of a PCB sensor and a magnetic scale or ring. It is designed for embedded motion control applications as a position control loop element in applications with limited space. It guarantees a highly repeatable position measurement under wide mounting tolerances and temperature ranges.
Features & Benefits
- Incremental push-pull output (24 V)
- Unique or periodic bidirectional index impulse
- High system accuracy up to ±10 μm
- High threshold logic (HTL)

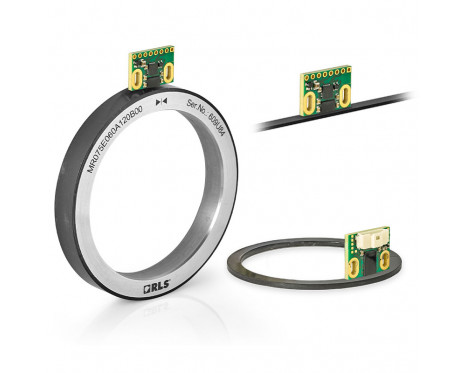

- For use with scales, radial and axial rings
- Non-contact and wear-free measuring principle
- Miniature design
- Status indicator LED
Request a quote
Product data
System
- Encoder type
- Incremental
- Reading type
- Axial, Linear, Radial
- Outputs
- Incremental, Push-pull
- Max. resolution
- 13 bit
- Accuracy
- Up to ±10 µm
Electrical
- Supply voltage
- 24 V ±10 % (on the readhead)
- Current consumption
- < 10.5 mA without 1000 Ω termination, < 85 mA with 1000 Ω termination
Environmental
- Operating and storage temperature
- –40 °C to +105 °C
