MS TRS

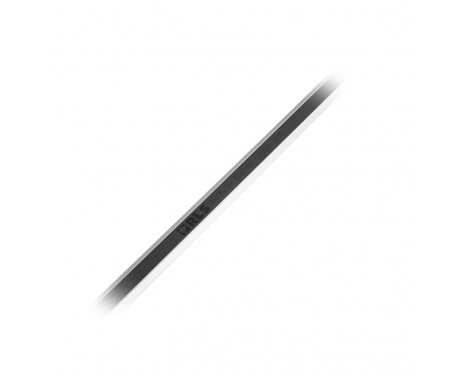

Magnetic Scale for TRS Track System
TRS system is designed for applications that require an easily removable scale. The track system consists of aluminium guide rails and a scale clamp element. It holds the magnetic scale securely while allowing it to expand and contract freely. The scale clamp provides a fixed point from which the MS scale can expand.
Read more about TRS system
Features & Benefits
- Compatible with incremental RLS readheads
- Four accuracy grades available:
±10 μm/m, ±20 μm/m, ±40 μm/m, ±100 μm/m - Partial arc application possibility
- Optional protective cover foil for heavy duty applications
- Up to 150 m length
- Easy and fast replacement even if access is limited
- Thermal expansion of the scale can be independent
of the machine structure - Customer selectable position of reference mark
- Excellent resistance to dirt, dust and humidity
- Easy installation with adhesive tape, end clamps or track section
Product data
System
- Accuracy grade for MS scales
- ±10 µm (available for lengths up to 20 m only), ±100 µm, ±20 µm, ±40 µm
- Pole length
- 2 mm, 5 mm, 2.032 mm (DPI)
- Maximum length for MS scale
- 150 m
Environmental
- RoHS
- Compliant with EU Directive 2002/95/EC
- Temperature
- Operating: –40 °C to +100 °C, Storage: –40 °C to +60 °C
System parts
