Overview

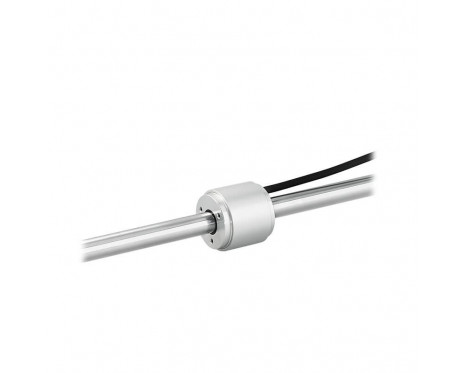

LinACE™ is an extremely robust absolute linear cylindrical encoder system designed for direct integration into hydraulic, pneumatic, electromechanical actuators and linear motors as a position or velocity feedback element.

The LinACE encoder system is suitable for integration into electrical, hydraulic and pneumatic actuators for motion control in industrial and medical applications. A custom design service for OEM integration is also available.

Features

  • Resolution to 0.5 μm
  • Measuring length up to 450 mm
  • Speed up to 5 m/s
  • Asynchronous serial RS422 communication, PWM, SSI and BiSS interface

Benefits

  • True absolute system
  • Built-in self-monitoring
  • Non-magnetised hard chrome plated coded shaft
  • Coded shaft insensitive to stray magnetic fields
Configure and Buy Configure Data sheet

Product data

System

Outputs
Asynchronous serial, BiSS, PWM, SSI
Encoder type
True absolute encoder
Reading type
Linear
Resolution
Maximum speed
5 m/s
Repeatability
Better than unit of resolution
Hysteresis
Less than unit of resolution (without mechanical assembly influence)

Electrical

ESD protection
HBM, Class 2, max. 2 kV (on connection side)
Supply voltage
4.5 V to 5.5 V – voltage on readhead. Consider voltage drop over cable
Set-up time
200 ms (after switch-on)
Current consumption
Typ. 115 mA, max. 150 mA

Environmental

Humidity
0 to 70 % non-condensing
IP protection
IP40
Operating and storage temperature
–30 °C to +85 °C (high flex cable: –20 °C to +80 °C)
More info in Data sheet
