径向增量粘合
磁环

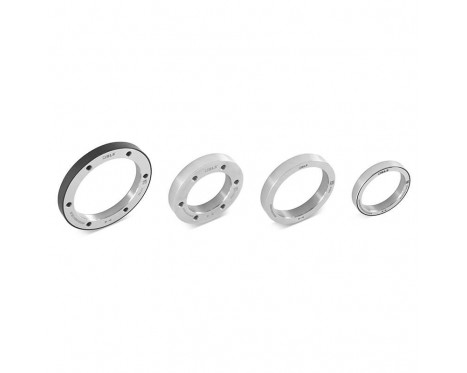

坚固耐用的RLS径向增量磁环带有弹性铁素体层，牢固粘合到不锈钢码盘支架上。弹性铁素体层经过磁化，带有极距为2 mm的交替变化的磁极，可形成增量式磁化模式。
特点与优势
- Non-contact technology
- Compatible with RLS LM and RoLin family redheads
- Different shaft diameters available
- Unique or periodic reference mark
- High speed operation
- Easy mounting
- Excellent resistance to dirt and dust
产品数据
机械
- 热膨胀系数
- 11.2 x 10-6 K-1
- 材料类型（磁环）
- NBR + 铁素体
环境
- 工作和存储温度
- -40 °C至+85 °C
系统部件
