概觀

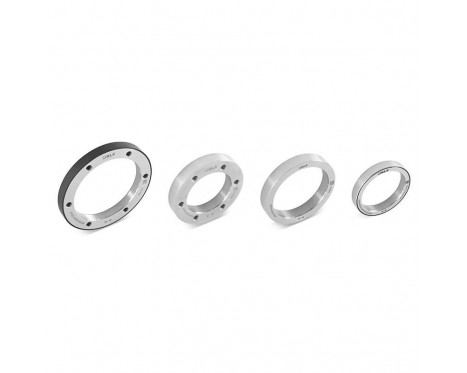

The robust RLS radial magnetic incremental rings consist of an elasto-ferrite layer firmly bonded on a stainless steel hub. The elasto-ferrite layer is magnetised with 2 mm long alternating magnetic poles, which form an incremental magnetic pattern.
特徵
- Non-contact technology
- Compatible with RLS LM and RoLin family redheads
- Different shaft diameters available
- Unique or periodic reference mark
優點
- High speed operation
- Easy mounting
- Excellent resistance to dirt and dust
配置與購買
Configure
規格資料表
產品資料
機械
熱膨脹係數
11.2 x 10-6 K-1
材料類型（環）
NBR + ferrite
環境
工作及存放條件
–40 °C 至 +85 °C
Speed calculator
Calculate maximum speed and determine product parameters based on your application.
