概要

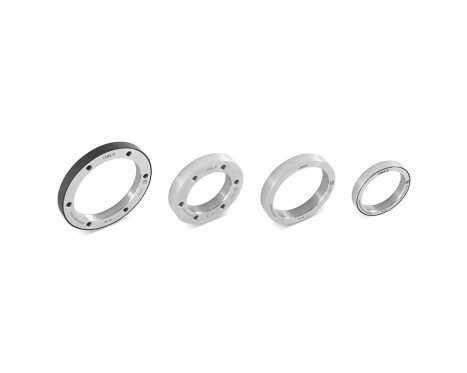

The robust RLS radial magnetic incremental rings consist of an elasto-ferrite layer firmly bonded on a stainless steel hub. The elasto-ferrite layer is magnetised with 2 mm long alternating magnetic poles, which form an incremental magnetic pattern.

機能

  • Non-contact technology
  • Compatible with RLS LM and RoLin family redheads
  • Different shaft diameters available
  • Unique or periodic reference mark

メリット

  • High speed operation
  • Easy mounting
  • Excellent resistance to dirt and dust
構成して購入 Configure データシート

製品データ

機械

熱膨張率
11.2 x 10-6 K-1
材質 (リング)
NBR + ferrite

環境

動作時/保管時温度
-40℃~+85℃
詳細はデータシート参照

Speed calculator

Calculate maximum speed and determine product parameters based on your application.

導入事例

ダウンロード

3D model: MR Bonded Radial Incremental Magnetic Rings 3D model: RLC2HD miniature encoder 3D model: LM10 rotary magnetic encoder 3D model: LM13 dpi readhead 3D model: LM13 rotary magnetic encoder 3D model: LM13 readhead 3D model: RoLin rotary magnetic encoder 3D model: RoLin Linear 3D model: LM10 readhead 3D model: Rolin with flex driver 3D model: RLB rotary magnetic encoder 3D model: RLC2IC_Molex-527451197_PN-13 3D model: RLC2IC_Molex-5015681107_PN-12 3D model: RLC2IC_AMPHENOL-10114828-11108LF_PN-20 3D model: RLC2IC rotary magnetic encoder (through-hole) 3D model: LM10 with MS10 track system 3D model: LM10ECL00 End Clamp
$13.02
