概要

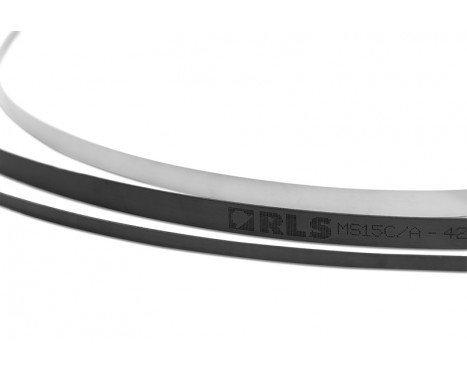

The robust RLS magnetic scales consist of a stainless steel carrier and an elastomer-bonded ferrite. The elasto-ferrite layer is magnetised with 2 mm, 2.032 mm or 5 mm long alternating magnetic poles that form an incremental magnetic pattern. Custom magnetisation is also possible.

機能

  • Compatibile with incremental RLS readheads
  • Four accuracy grades available:
    ±10 μm/m, ±20 μm/m, ±40 μm/m, ±100 μm/m
  • Partial arc application possibility
  • Optional protective cover foil for heavy duty applications
  • Up to 150 m length

メリット

  • Customer selectable position of reference mark
  • Excellent resistance to dirt, dust and humidity
  • Easy installation with adhesive tape, end clamps or track section
構成して購入 Configure データシート

製品データ

システム

磁気スケールの精度等級
±100µm, ±10µm (20m 以下のみ), ±20µm, ±40µm
磁極ピッチ
2mm, 5mm, 2.032 mm (DPI)
磁気スケールの最大長
150 m

環境

RoHS
EU 指令 2002/95/EC 準拠
温度
Operating: –40 °C to +100 °C (scale applied on the linear guide), –40 °C to +80 °C (scale applied on the curved surface), 保管時: -40℃~+60℃
詳細はデータシート参照
