概觀

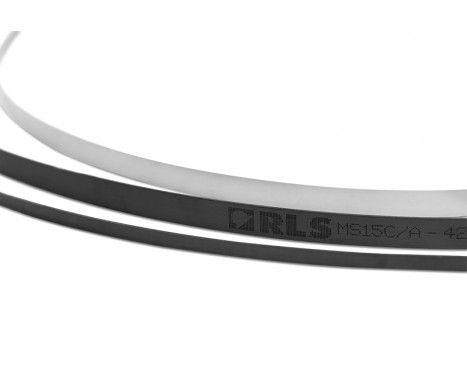

The robust RLS magnetic scales consist of a stainless steel carrier and an elastomer-bonded ferrite. The elasto-ferrite layer is magnetised with 2 mm, 2.032 mm or 5 mm long alternating magnetic poles that form an incremental magnetic pattern. Custom magnetisation is also possible.

特徵

  • Compatibile with incremental RLS readheads
  • Four accuracy grades available:
    ±10 μm/m, ±20 μm/m, ±40 μm/m, ±100 μm/m
  • Partial arc application possibility
  • Optional protective cover foil for heavy duty applications
  • Up to 150 m length

優點

  • Customer selectable position of reference mark
  • Excellent resistance to dirt, dust and humidity
  • Easy installation with adhesive tape, end clamps or track section
配置與購買 Configure 規格資料表

產品資料

系統

MS 磁性尺精度等級
±10 μm(僅適用於最長 20 m 的長度), ±100 µm, ±20 µm, ±40 µm
極長度
2 mm, 5 mm, 2.032 mm (DPI)
MS 磁性尺最長長度
150 m

環境

RoHS
符合 EU 指令 2002/95/EC
溫度
Operating: –40 °C to +100 °C (scale applied on the linear guide), –40 °C to +80 °C (scale applied on the curved surface), 存放條件:–40 °C 至 +60 °C
規格資料表提供詳細資訊

下載

$13.02
