概述

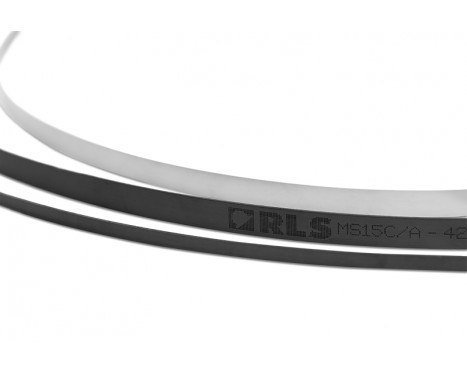

The robust RLS magnetic scales consist of a stainless steel carrier and an elastomer-bonded ferrite. The elasto-ferrite layer is magnetised with 2 mm, 2.032 mm or 5 mm long alternating magnetic poles that form an incremental magnetic pattern. Custom magnetisation is also possible.

特性

  • Compatibile with incremental RLS readheads
  • Four accuracy grades available:
    ±10 μm/m, ±20 μm/m, ±40 μm/m, ±100 μm/m
  • Partial arc application possibility
  • Optional protective cover foil for heavy duty applications
  • Up to 150 m length

优点

  • Customer selectable position of reference mark
  • Excellent resistance to dirt, dust and humidity
  • Easy installation with adhesive tape, end clamps or track section
配置并购买 配置 规格手册

产品数据

系统

MS磁栅尺精度等级
±10 µm(仅限长度不超过20 m时), ±100 µm, ±20 µm, ±40 µm
极距
2 mm, 5 mm, 2.032 mm (DPI)
MS磁栅尺最大长度
150 m

环境

RoHS
符合欧盟指令2002/95/EC
温度
Operating: –40 °C to +100 °C (scale applied on the linear guide), –40 °C to +80 °C (scale applied on the curved surface), 存储:-40 °C至+60 °C
更多信息请参阅规格手册
