개요

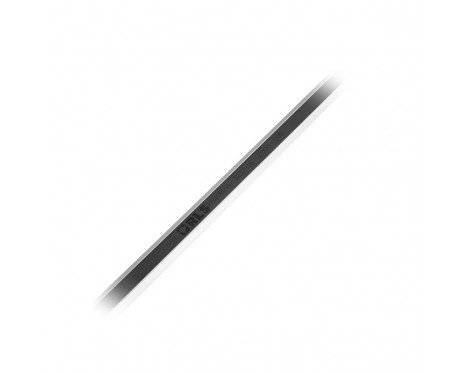

TRS system is designed for applications that require an easily removable scale. The track system consists of aluminium guide rails and a scale clamp element. It holds the magnetic scale securely while allowing it to expand and contract freely. The scale clamp provides a fixed point from which the MS scale can expand. Read more about TRS system

기능

  • Compatibile with incremental RLS readheads
  • Four accuracy grades available:
    ±10 μm/m, ±20 μm/m, ±40 μm/m, ±100 μm/m
  • Partial arc application possibility
  • Optional protective cover foil for heavy duty applications
  • Up to 150 m length

이점

  • Easy and fast replacement even if access is limited
  • Thermal expansion of the scale can be independent
    of the machine structure
  • Customer selectable position of reference mark
  • Excellent resistance to dirt, dust and humidity
  • Easy installation with adhesive tape, end clamps or track section
구성 및 구매 Configure 데이터 시트

제품 데이터

시스템

MS 스케일의 정확도 등급
±10 μm (최대 길이 20 m까지 가능), ±100 µm, ±20 µm, ±40 µm
자극 간격
2 mm, 5 mm, 2.032 mm (DPI)
MS 스케일의 최대 길이
150 m

환경

RoHS
EU 지시문 2002/95/EC 준수
온도
Operating: –40 °C to +100 °C (scale applied on the linear guide), –40 °C to +80 °C (scale applied on the curved surface), 보관 시: -40 °C ~ +60 °C
데이터 시트의 추가 정보

다운로드
