概觀

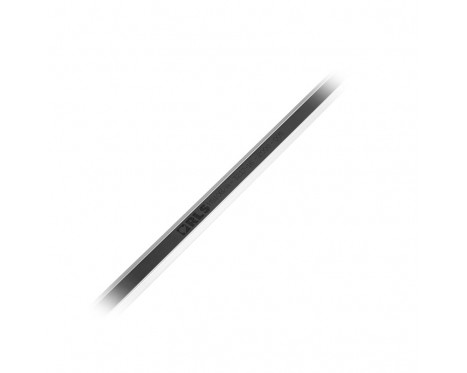

TRS system is designed for applications that require an easily removable scale. The track system consists of aluminium guide rails and a scale clamp element. It holds the magnetic scale securely while allowing it to expand and contract freely. The scale clamp provides a fixed point from which the MS scale can expand. Read more about TRS system
特徵
- Compatibile with incremental RLS readheads
- Four accuracy grades available:
±10 μm/m, ±20 μm/m, ±40 μm/m, ±100 μm/m - Partial arc application possibility
- Optional protective cover foil for heavy duty applications
- Up to 150 m length
優點
- Easy and fast replacement even if access is limited
- Thermal expansion of the scale can be independent
of the machine structure - Customer selectable position of reference mark
- Excellent resistance to dirt, dust and humidity
- Easy installation with adhesive tape, end clamps or track section
配置與購買
Configure
規格資料表
產品資料
系統
MS 磁性尺精度等級
±10 μm(僅適用於最長 20 m 的長度), ±100 µm, ±20 µm, ±40 µm
極長度
2 mm, 5 mm, 2.032 mm (DPI)
MS 磁性尺最長長度
150 m
環境
RoHS
符合 EU 指令 2002/95/EC
溫度
Operating: –40 °C to +100 °C (scale applied on the linear guide), –40 °C to +80 °C (scale applied on the curved surface), 存放條件:–40 °C 至 +60 °C
