Übersicht

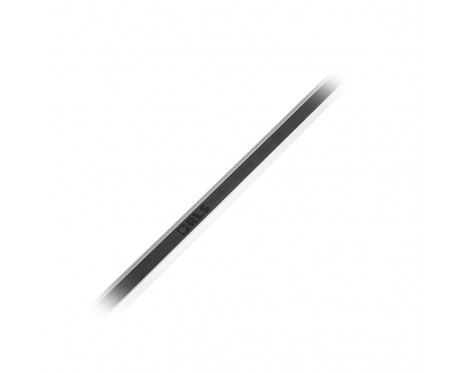

TRS system is designed for applications that require an easily removable scale. The track system consists of aluminium guide rails and a scale clamp element. It holds the magnetic scale securely while allowing it to expand and contract freely. The scale clamp provides a fixed point from which the MS scale can expand. Read more about TRS system

Merkmale

  • Compatibile with incremental RLS readheads
  • Four accuracy grades available:
    ±10 μm/m, ±20 μm/m, ±40 μm/m, ±100 μm/m
  • Partial arc application possibility
  • Optional protective cover foil for heavy duty applications
  • Up to 150 m length

Vorteile

  • Easy and fast replacement even if access is limited
  • Thermal expansion of the scale can be independent
    of the machine structure
  • Customer selectable position of reference mark
  • Excellent resistance to dirt, dust and humidity
  • Easy installation with adhesive tape, end clamps or track section
Konfigurieren und kaufen Konfigurieren Datenblatt

Produktdaten

System

Gesamtgenauigkeit
±10 μm (nur erhältlich für Längen bis zu 20 m), ±100 µm, ±20 µm, ±40 µm
Polteilung
2 mm, 5 mm, 2.032 mm (DPI)
Maximale Messlänge für MS Maßband
150 m

Umwelt

RoHS
Erfüllt die EU-Richtlinie 2002/95/EG
Temperatur
Lagerung: -40 °C bis +60 °C, Operating: –40 °C to +100 °C (scale applied on the linear guide), –40 °C to +80 °C (scale applied on the curved surface)
Weitere Informationen finden Sie im Datenblatt

Downloads
