概述

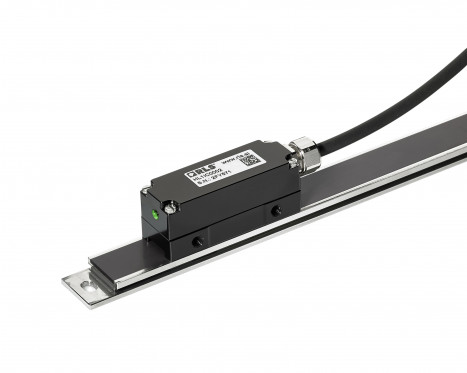

The HiLin series of highest performance general purpose robust magnetic encoders is a family of linear incremental systems suitable for a variety of demanding applications. The incremental encoder system consists of a compact sealed readhead and a separate magnetic scale.

特性

  • Customer selectable resolutions down to 0.1 μm
  • Low hysteresis: ≤1 μm
  • Low interpolation error (SDE): ±1.5 μm
  • High travel speed (25.28 m/s with 1 μm resolution)
  • Wide operating temperature range from –40 °C to +75 °C

优点

  • Easy handling and installation
  • Suitable for applications in very demanding environments
  • Unique, periodic or distance-coded reference mark
配置并购买 配置 规格手册

产品数据

系统

编码器类型
增量式
读取类型
直线
分辨率
From 0.1μm
精度
±5 μm/m (at 20 °C)
Short range accuracy
±3 μm (at 20 °C, up to 30 mm)
SDE
±1.5 μm
重复精度
±0.4 μm
磁滞
≤1 μm
极距
2 mm, 2.032 mm (DPI)

电气

电源电压
4.75 V至12 V — 读数头电压。
Set-up time
< 1 s
电流消耗
<250 mA (without termination), <450 mA (with termination)

机械

质量
读数头:32 g
最大电缆长度
10 m

环境

IP保护
IP67
工作和存储温度
–40 °C至+75 °C
更多信息请参阅规格手册
