概觀

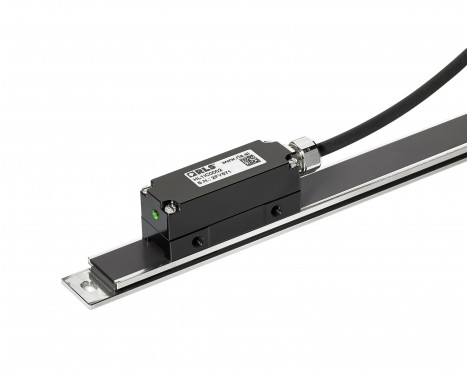

The HiLin series of highest performance general purpose robust magnetic encoders is a family of linear incremental systems suitable for a variety of demanding applications. The incremental encoder system consists of a compact sealed readhead and a separate magnetic scale.

特徵

  • Customer selectable resolutions down to 0.05 μm
  • Low hysteresis: ≤1 μm
  • Low interpolation error (SDE): ±1.5 μm
  • High travel speed (2.56 m/s with 0.1 μm resolution)
  • Wide operating temperature range from –40 °C to +75 °C

優點

  • High accuracy
  • Suitable for applications in very demanding environments
  • Unique, periodic or distance-coded reference mark
配置與購買 Configure

產品資料

系統

編碼器類型
增量式
讀取類型
線性
解析度
From 0.05μm
精度
±5 μm (at 20 °C)
SDE
±1.5 μm
重複性
±0.4 μm
遲滯
≤1 μm
極長度
2 mm, 2.032 mm (DPI)

電氣

供應電壓
4.75 V 至 12 V – 讀頭電壓。
Set-up time
< 1 s
電流消耗
<250 mA (without termination), <450 mA (with termination)

機械

質量
讀頭:40 g
纜線最長長度
10 m

環境

IP 防護等級
IP67
溫度
存放條件:–40 °C 至 +60 °C, 工作溫度:–40 °C 至 +75 °C
