AS10
앱솔루트 스케일

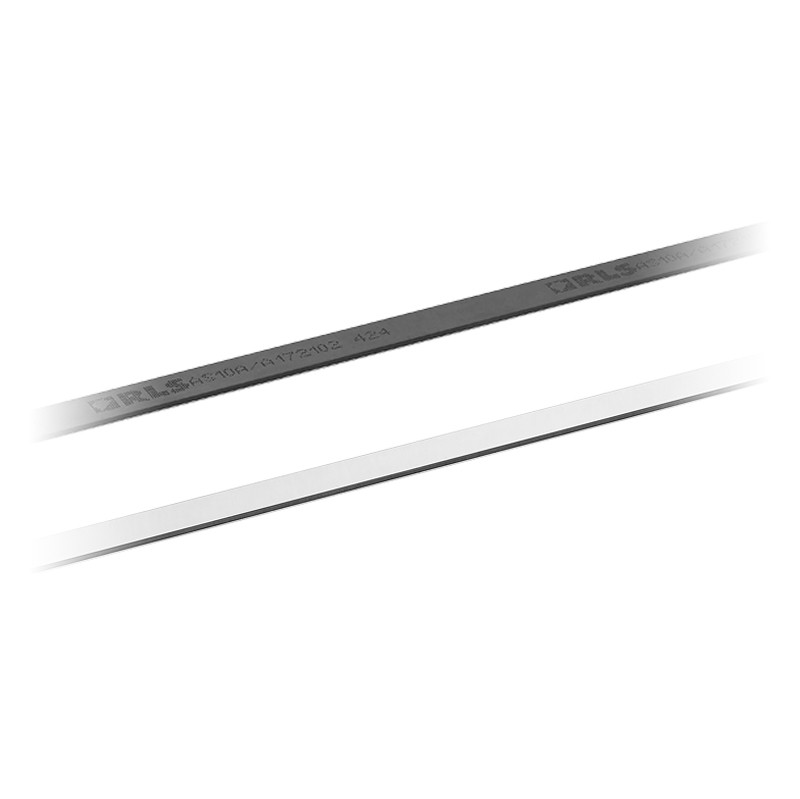

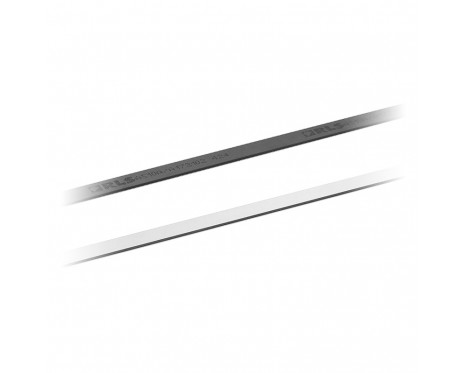

The robust AS absolute magnetic scales consist of a stainless steel carrier and an elastomer-bonded ferrite. The elasto-ferrite layer is magnetised with an incremental magnetic pattern and a pseudo-random code for reliable absolute position sensing.
특징 및 이점
- Excellent resistance to dirt, dust and humidity
- Easy installation with adhesive tape, end clamps or track section
- Optional protective cover foil for heavy duty applications
- Partial arc application possibility
- Easy installation
- Track system compatible
- Up to 16,3 m length
제품 데이터
시스템
- 정확도
- ±30 μm/m, 설치 높이 0.2 mm
- 자극 간격
- 2 mm
- Max. length for AS scale
- 16.3 m
환경
- 온도
- 작동 시: -40 °C ~ +100 °C, 보관 시: -40 °C ~ +60 °C
시스템 부품
다운로드
- pdf Data sheet: LA11 absolute magnetic encoder system (LA11D01)
- pdf Data sheet: AS absolute magnetic scale (ASD01)
- pdf Installation guide: Table of recommended fastener tightening torques
- pdf Application note: CRC calculation (CRCD01)
- zip 3D model: LA11 absolute magnetic encoder system
- zip 3D model: TRE004A00
- zip 3D model: TRE004A01
- zip 3D model: AS10 scale
- zip 3D model: LMA10ASC00
- zip 3D model: AS10 scale with VHB
- pdf Declaration of conformity EU LA11
- pdf Declaration of conformity EU cover foils
- pdf Declaration of conformity EU MS AS WL HM MR FI
