概述

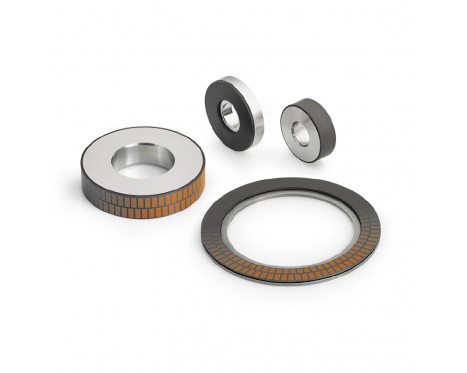

The robust RLS radial and axial magnetic rings consist of an elasto-ferrite layer which is bonded to a steel hub. The elasto-ferrite layer is magnetised with nonius magnetisation with different pole lengths and different numbers of magnetic periods.

特性

  • Non-contact technology
  • High speed operation
  • Installation with adhesive bond or press-fitting

优点

  • Compatible with existing Nonius sensors and readheads
  • High quality magnetisation
  • Excellent resistance to dirt and dust
  • High precision machining
配置并购买 配置

产品数据

系统

Magnetisation
2-track Nonius absolute
最高速度
12,000 RPM
Magnetic periods
32/31, 64/63
极距
1.28 mm, 1.50 mm
Magnetic field density
40 mT

环境

工作和存储温度
-40 °C至+85 °C
