概觀

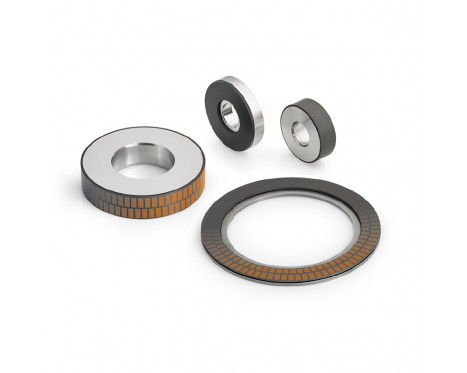

The robust RLS radial and axial magnetic rings consist of an elasto-ferrite layer which is bonded to a steel hub. The elasto-ferrite layer is magnetised with nonius magnetisation with different pole lengths and different numbers of magnetic periods.

特徵

  • Non-contact technology
  • High speed operation
  • Installation with adhesive bond or press-fitting

優點

  • Compatible with existing Nonius sensors and readheads
  • High quality magnetisation
  • Excellent resistance to dirt and dust
  • High precision machining
配置與購買 Configure

產品資料

系統

Magnetisation
2-track Nonius absolute
最高速度
12,000 RPM
Magnetic periods
32/31, 64/63
極長度
1.28 mm, 1.50 mm
Magnetic field density
40 mT

環境

工作及存放條件
–40 °C 至 +85 °C
