Übersicht

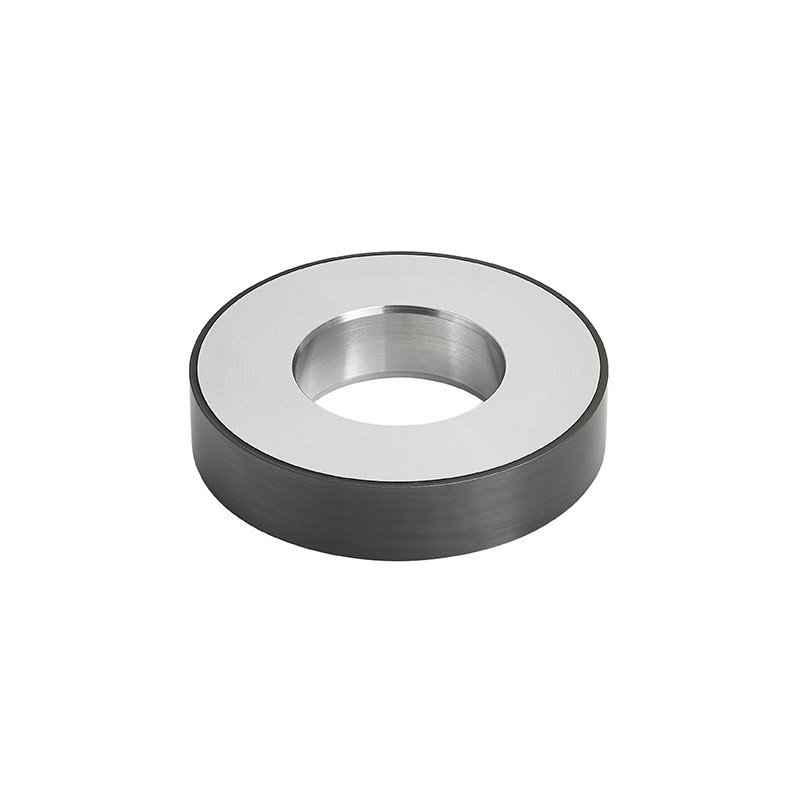

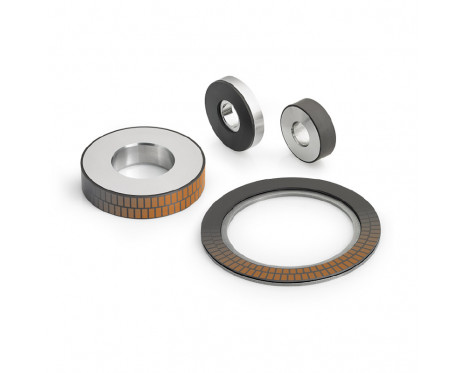

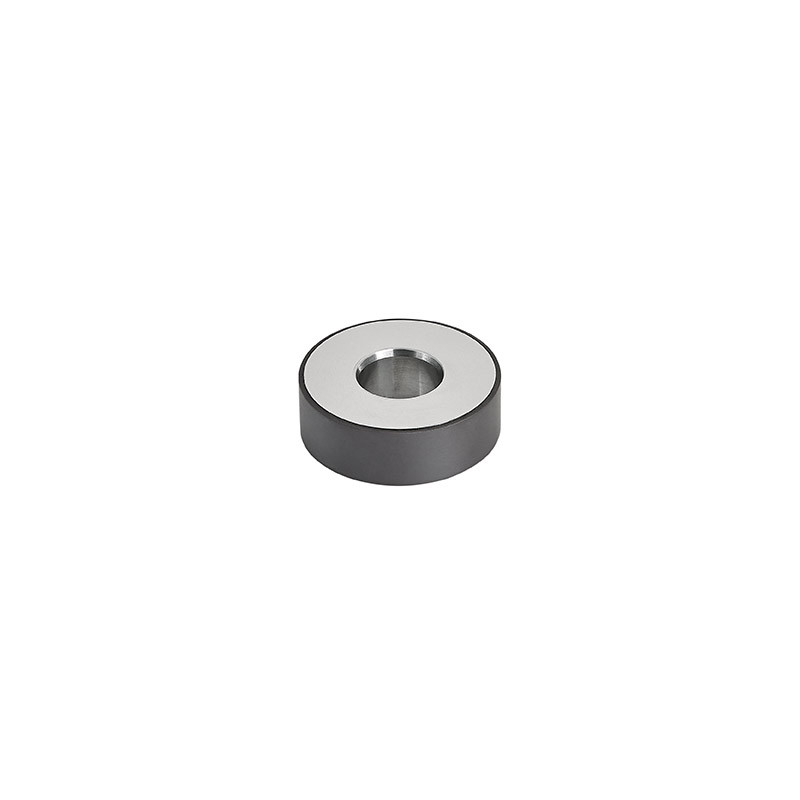

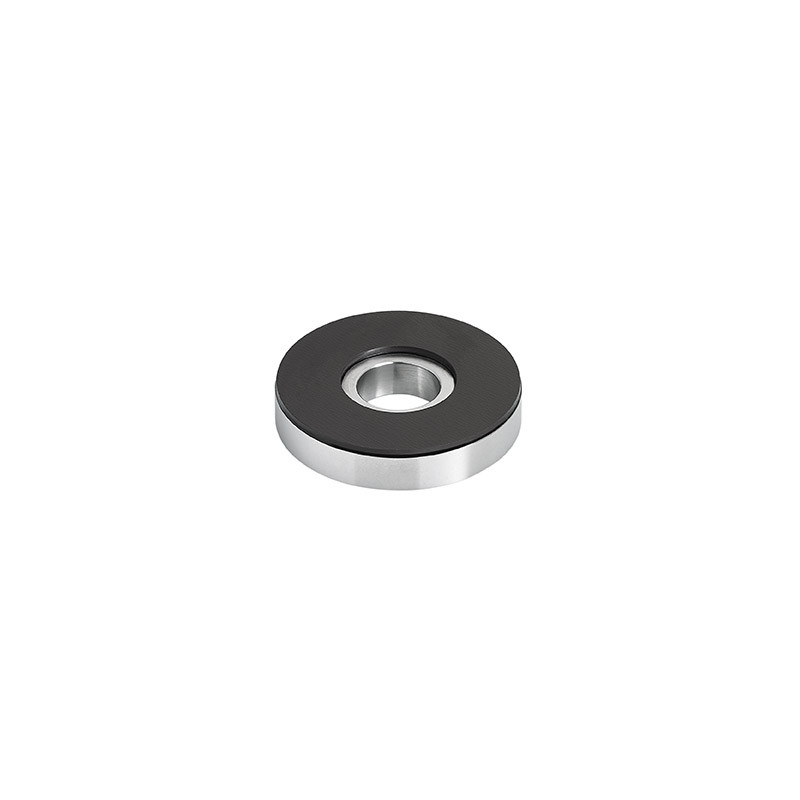

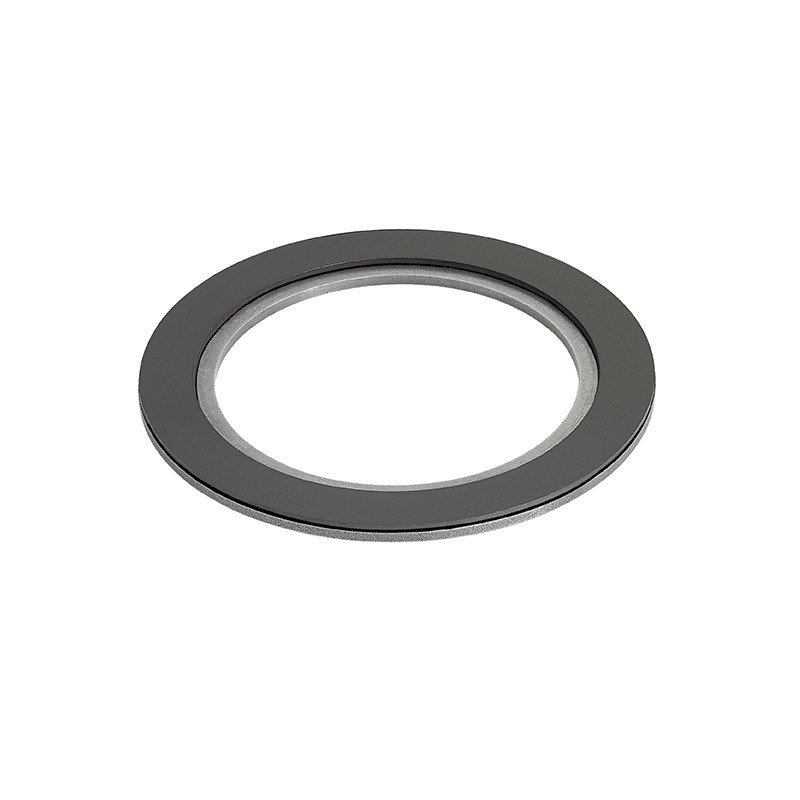

The robust RLS radial and axial magnetic rings consist of an elasto-ferrite layer which is bonded to a steel hub. The elasto-ferrite layer is magnetised with nonius magnetisation with different pole lengths and different numbers of magnetic periods.

Merkmale

  • Non-contact technology
  • High speed operation
  • Installation with adhesive bond or press-fitting

Vorteile

  • Compatible with existing Nonius sensors and readheads
  • High quality magnetisation
  • Excellent resistance to dirt and dust
  • High precision machining
Konfigurieren und kaufen Konfigurieren

Produktdaten

System

Magnetisation
2-track Nonius absolute
Maximale Geschwindigkeit
12.000 U/min
Magnetic periods
32/31, 64/63
Polteilung
1.28 mm, 1.50 mm
Magnetic field density
40 mT

Umwelt

Betriebs- und Lagertemperatur
-40 °C bis +85 °C
