概述

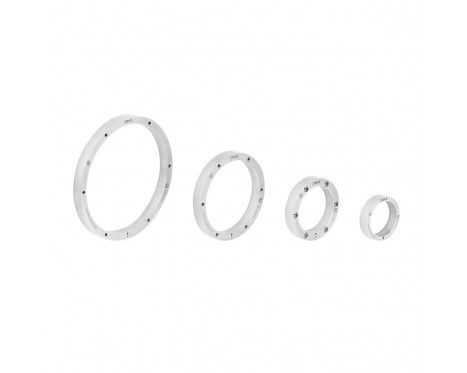

SAR 适用于Artos™绝对式编码器的磁环

绝对式径向磁环与Artos™读数头兼容，适合要求极为苛刻的应用。坚固耐用的设计可保护磁环，防止液体进入和高温，使其即使在污染严重的高温环境中也能够不受损坏。

优点

  • 兼容Artos™读数头
  • 对常见机床污染物具有优异的抗污性
  • 提供不同的直径尺寸
  • 易于安装
  • 高运行速度
  • 高温环境下运行
配置并购买 配置 规格手册

产品数据

系统

Max. rotational speed
最高可达30,000 RPM

机械

可用磁环大小（外径）
57 mm, 81 mm, 114.2 mm, 162 mm, 229 mm, 325 mm, 478 mm

环境

工作和存储温度
–20 °C至+85 °C
Protection
外露式, 带盖条, 焊接 (IP67)
更多信息请参阅规格手册

Speed calculator

Calculate maximum speed and determine product parameters based on your application.

Go to Speed calculator
