概要

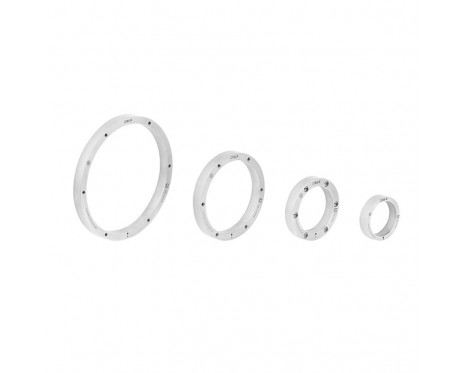

Absolute radial magnetic rings are compatible with the Artos™ readhead and are suitable for most demanding applications. The robust design protects the magnetic ring against the ingress of liquids and high temperatures, so that it remains undamaged even in extremely contaminated and hot environments.
メリット
- Compatible with Artos™ readhead
- Excellent resistance to common machine tool contaminants
- Various sizes of diameters available
- Easy mounting
- High operating speed
- Operation at high temperatures
構成して購入
Configure
データシート
製品データ
システム
Max. rotational speed
up to 30,000 RPM
機械
対応リングサイズ (外径)
57 mm, 81 mm, 114.2 mm, 162mm, 229 mm, 325 mm, 478 mm
環境
動作時/保管時温度
-20 °C to +85 °C
Protection
Exposed, With a cover foil, Welded (IP67)
Speed calculator
Calculate maximum speed and determine product parameters based on your application.
