概述

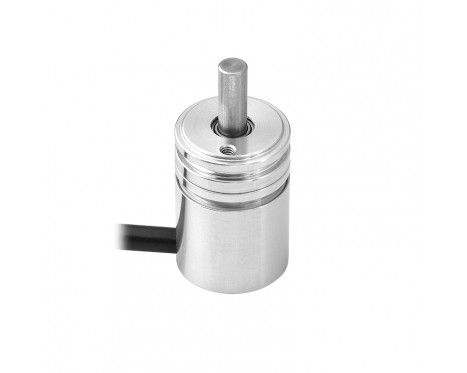

The RE16 is a compact, sealed, miniature, high speed rotary magnetic encoder designed for use in space limited applications. The encoder body is just 16 mm in diameter in aluminum housing.

特性

  • Super small size – 16 mm diameter body
  • 5 V power supply versions
  • Industry standard incremental, SSI and linear voltage output formats

优点

  • Non-contact, frictionless design
  • High speed operation up to 30,000 rpm
  • Accuracy ±0.3°
  • RoHS compliant
配置并购买 配置 规格手册

产品数据

系统

编码器类型
增量式, 绝对式
精度
±0.3°
最高速度
30,000 RPM
磁滞
0.17°

电气

电源电压
5 V

机械

编码器外壳材料
质量
33 g (with 1m long cable)
最大电缆长度
10 m

环境

IP保护
IP67 on electronic side, IP40 on mechanical side
工作和存储温度
-40 °C to +125 °C
更多信息请参阅规格手册

应用

下载

US$ 13.02
