개요

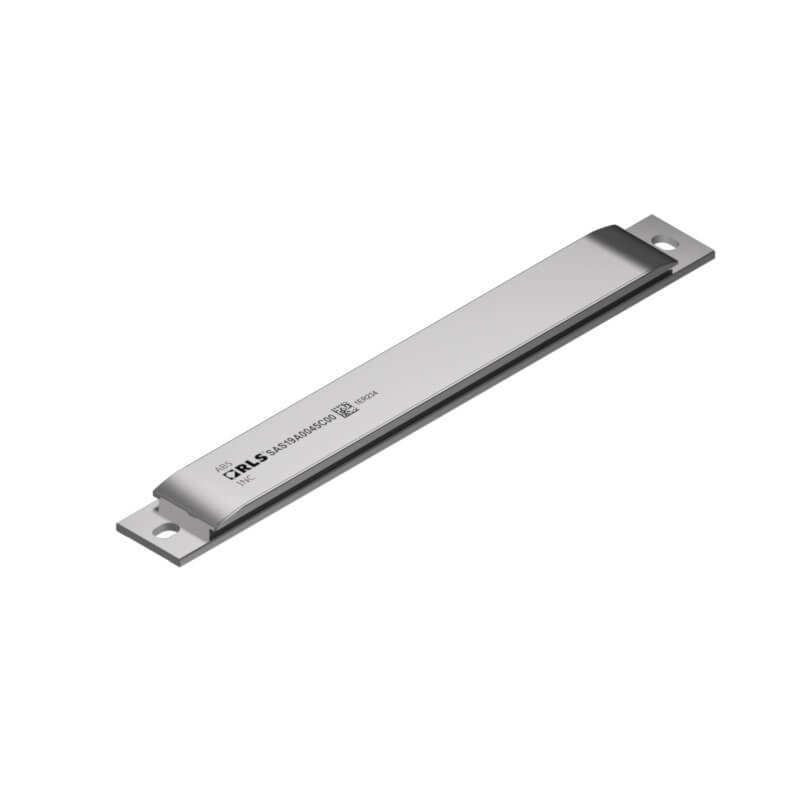

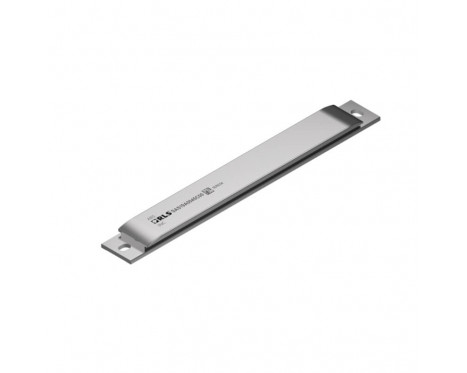

The robust absolute magnetic scale consists of a stainless steel carrier and an elastomer-bonded ferrite. The SAS19 is a solid scale available in predefined lengths. It can be fully enclosed making it suitable for harsh environments where oils or coolants are present. It is designed for compatibility with Artos readheads.

기능

  • Scale length up to 1.36 m
  • Fully enclosed IP67
  • Compatible with Artos readheads

이점

  • Excellent resistance to oils, coolants and grease
  • Easy installation
구성 및 구매 Configure 데이터 시트

제품 데이터

시스템

정확도
±6 μm/m, 설치 높이 0.2 mm
Max. scale length
1.36 m

환경

온도
보관 시: –40 °C to +75 °C, 작동 시: -40 °C ~ +100 °C
데이터 시트의 추가 정보

다운로드

US$13.02
