개요

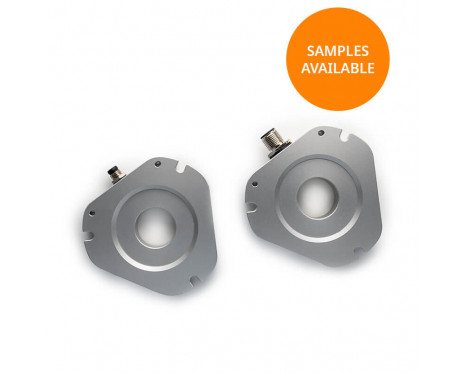

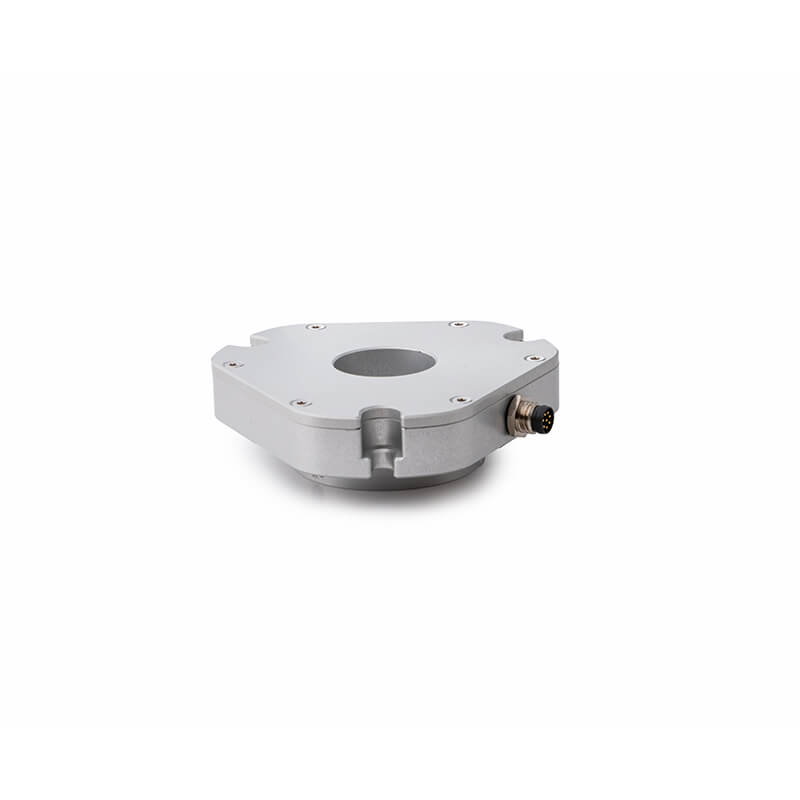

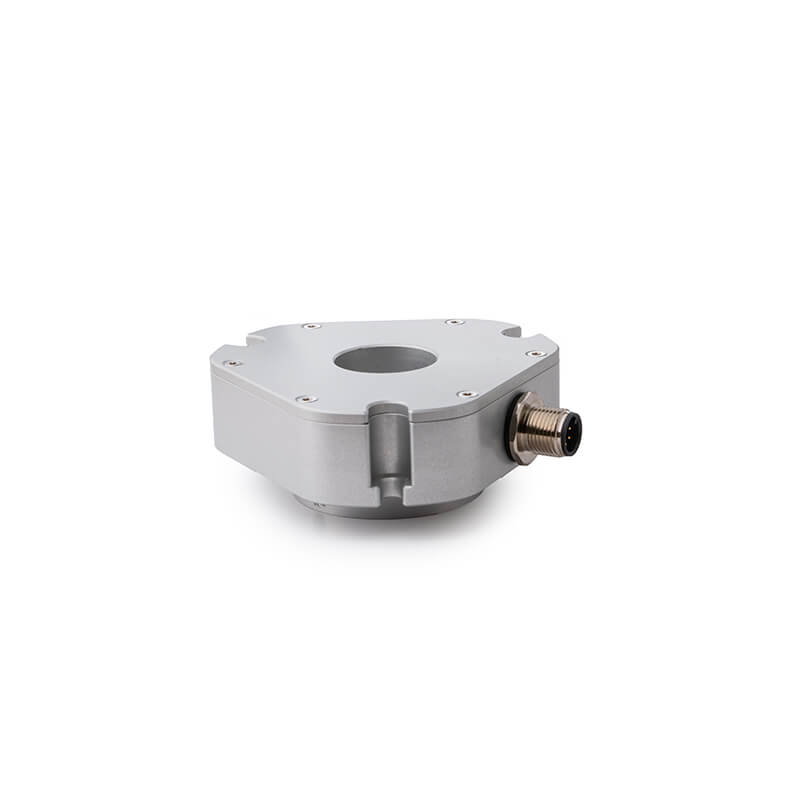

Orbis™ housed through-hole rotary encoder is an encoder for mounting on electric motors or other devices for measuring shaft position and speed. The solid metal housing offers high IP67 protection and high EMC immunity and best possible shock and vibration resistance.
기능
- BiSS and SSI output
- True absolute with 14-bit resolution
- Analogue output with one sin/cos per revolution
- M12, M8 connector or cable with flying leads
이점
- Trough Hole design
- IP67 protection for harsh environments
- Easy installation
- Two sizes
- Built-in self-diagnostics
Request a sample
제품 데이터
시스템
판독 유형
축 방향
분해능
Analogue: One sin/cos per revolution, BiSS / SSI: 14 bit
전기
공급 전압
5 V ±10 %
기계
Available ring sizes (inner diameter)
17 mm , 25 mm
환경
작동 및 보관 온도
-20 °C to +85 °C (with connector), -30 °C to +120 °C (with cable)
